Printer Master

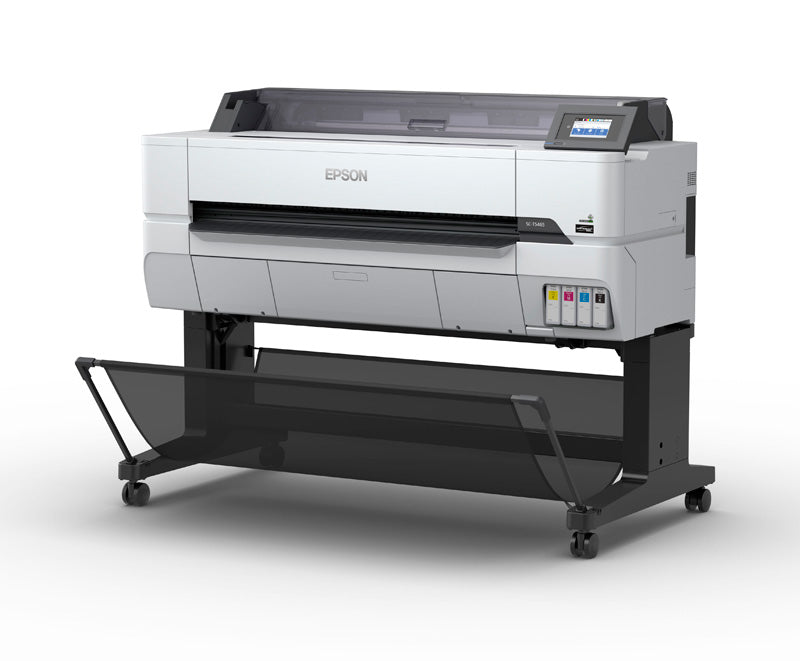

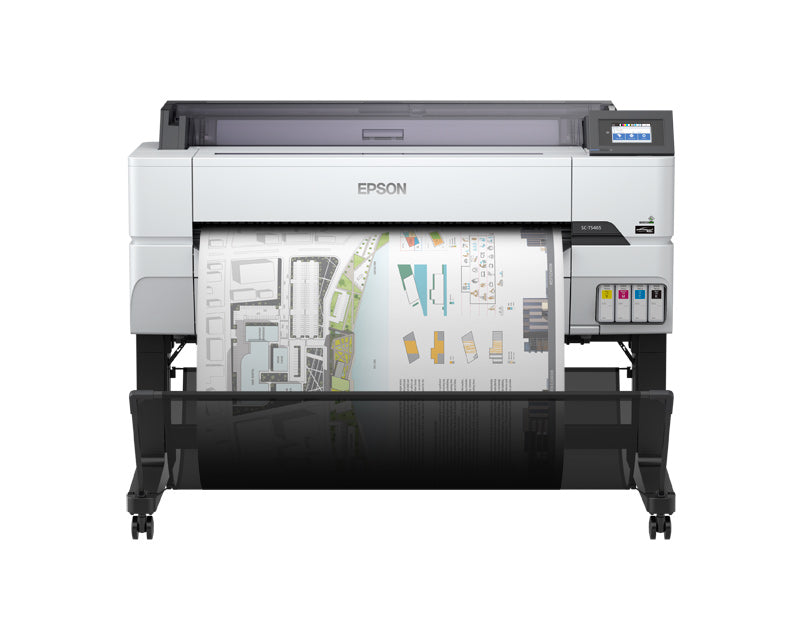

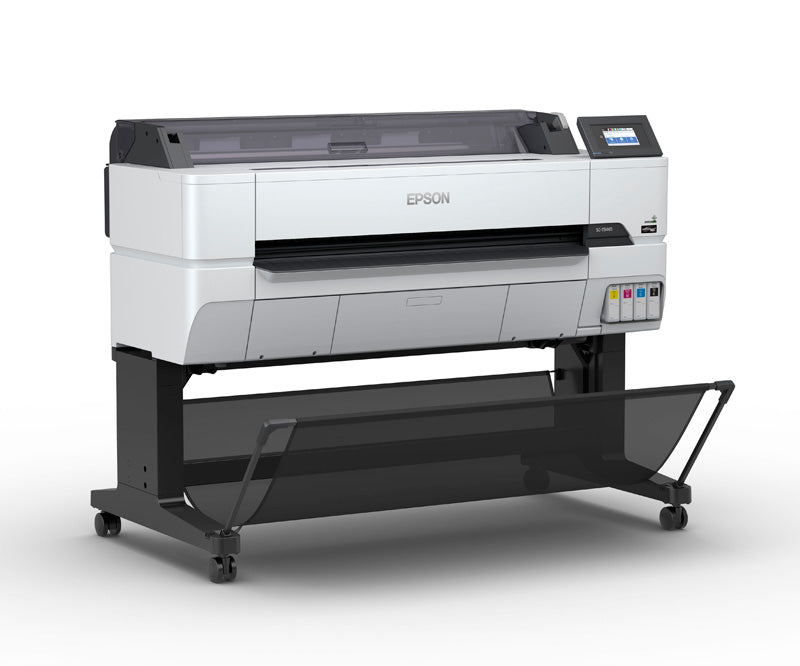

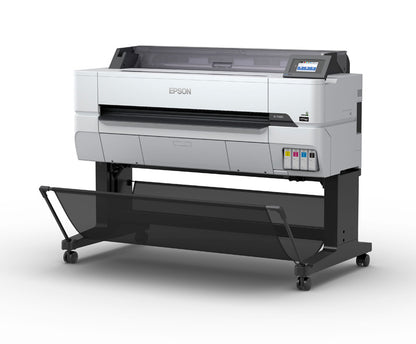

Epson SureColor T5465 - 36" SF Large Format Printer

Epson SureColor T5465 - 36" SF Large Format Printer

$5,459.00
$5,459.00
Sale Sold out

The SC-T5465 features Epson's latest PrecisionCore™ print head and aqueous UltraChrome® XD2 pigment ink. It will print an A1 image in as little as 22s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for businesses that want to produce wide format prints, the printer is supplied with a stand and paper basket and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications.

TECHNICAL & CAD - PRINTER
PRODUCT NAME SureColor T5465 - 36"
SIZE
Max Print Width 36 inch wide (914mm)
PRINT TECHNOLOGY
Print Head PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes Uni & Bi-directional
Nozzle Configuration 800 per colour
Maximum Resolution 2400dpi x 1200dpi
Minimum Ink Droplet Size 4.0pl
INK SYSTEM
Family Epson Ultrachrome® XD2
Type All-Pigment Aqueous
Colours C+M+Y+K

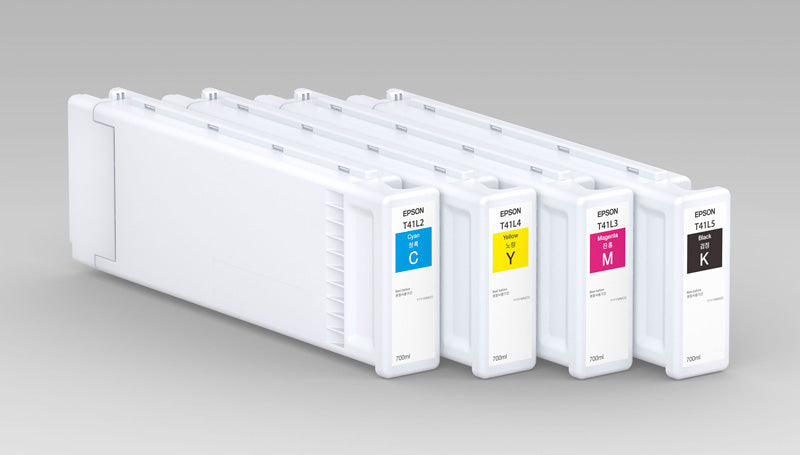

Cartridges CMYK 110ml
CMYK 350ml
CMYK 700ml
PERFORMANCE (per Sheet)
CAD A1 22sec
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type.
MEDIA SUPPORT
Roll Format Single roll top loaded spindle, 2" core, 3” core for plain paper, 0.08 to 0.3mm thick, 254-914mm wide, 170mm max diameter, max weight 12kg
Sheet Format Top loaded A4-A0/B1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick
Borderless Printing Supported Media Types: A1 (594mm) and A1+ (610mm), 700mm, B1 (728mm), A0 (841mm), A0+ (914mm)
Cut Sheet only borderless to the left and right of the sheet
Auto Cutter Inbuilt rotary type
Manual Double Sided Printing Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
Output Printer Stand incorporates a media basket
OPERATION
Control Panel 4.3" Colour LCD touch screen
Control Code ESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1
Connectivity USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Included Software Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only)
Software via web download HDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Print Automate, Epson Edge Dashboard, LFP Accounting tool
Roll Management System (Roll Format) Barcode Roll Media Management system helps keep track of the type of media and how many metres is left on the roll
USB Input Front panel USB slot enables JPEG and TIFF files to be printed direct from a thumb drive
Compatibility Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory 1GB RAM
Business Inkjet Printer Support USB interface with integrated copy and enlargement support for the following printers:
WF-C20590 series, WF-C17590 Series, WF-M20590 Series, WF-C20600 Series, WF-20750 Series, WF-21000 Series, WF-R8590 Series, WF-8590 Series, WF-C869R, WF-878R Series, WF-879R Series
Scanner Support USB interface with integrated control & auto enlargement
Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes
Supports A2, US-C (17x22"), B2, US-D (22x34"), A1, B1, US-E (34x44"), A0 & custom (89-610mm wide) output page sizes
Supports Epson DS-530, DS-6500 & DS6000 scanner models
Physical (WxDxH) 1385 × 750 × 1070 mm, 76kg (floor standing, closed basket, no ink, media or options)
1385 × 966 × 1070 mm, 76kg (floor standing, open basket, no ink, media or options)
ARM 64 Processor Compatibility IMPORTANT NOTICE: A number of printer drivers have been found to have compatibility issues with Windows PCs that feature an ARM 64 processor. Epson is currently reviewing our current and recent model ranges with a view to issuing updates. Unfortunately, although we will roll these out as quickly as we can the process is not expected to be completed until early 2026. In the interim we do not recommend operation with this type of equipment.
ENVIRONMENT
Operational Temp 10° to 35° C
Operational Humidity 20 to 80% (40 to 60% is recommended for no condensation)
Power Supply 100 - 240 V AC, 50/60 Hz
Power Consumption 38W Operating, 13W Standby, 1.3W Sleep
Operating Noise 50dB
Recommended Install Space (WxHxD) Floor-standing: 1385 × 750 × 1070 mm
SHIPPING INFO
Packaging (WxDxH) Floor standing: 1548 ｘ 850 ｘ 1100 mm, 113Kg
What’s in the Box Printer, Power Cord, set of 110ml ink cartridges, 1 x Maintenance Tank, Setup Guide & Warranty Info. Driver, user software & manuals on CD.
Delivery & Install Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations.
Service & Support Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas.







View full details
