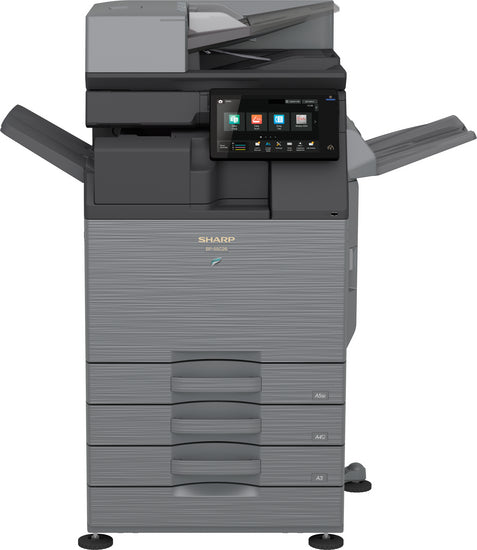

SHARP BP-55C26 26PPM A3 Colour Essentials MFD with DSPF

GENERAL

Original Size	Max A3

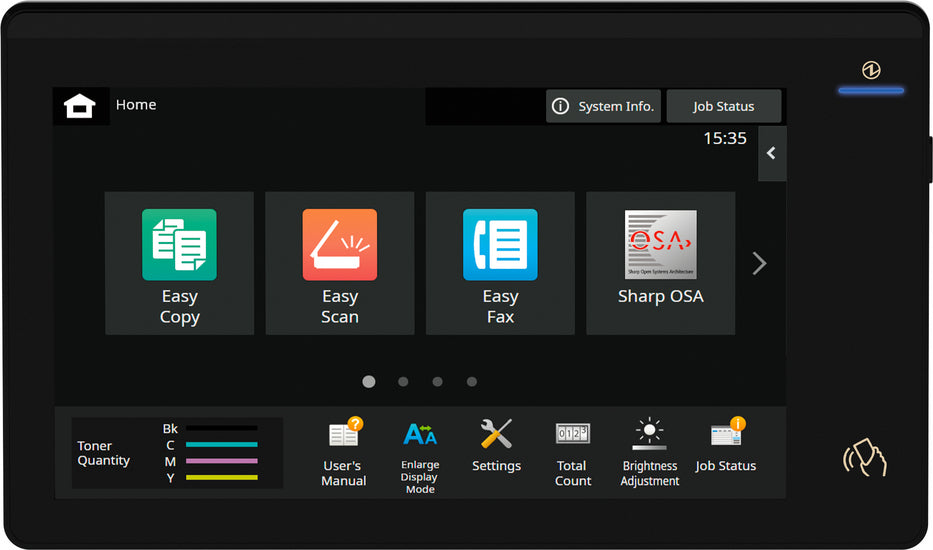

Operation Panel	10.1" Colour LCD Touch-Screen
Standard Paper Capacity	650 sheets (550-sheet x 1 + 100-sheet multi bypass)
Maximum Paper Capacity	6,300 (100-sheet Multi bypass + 550-sheets x 1) + Tandem Desk (550-sheets x 1, 1200 + 900 tandem) + LCC (3000 sheets)
Paper Weight	Tray: 60 g/m2 to 300 g/m2. Multi-bypass tray: 55 g/m2 to 300 g/m2

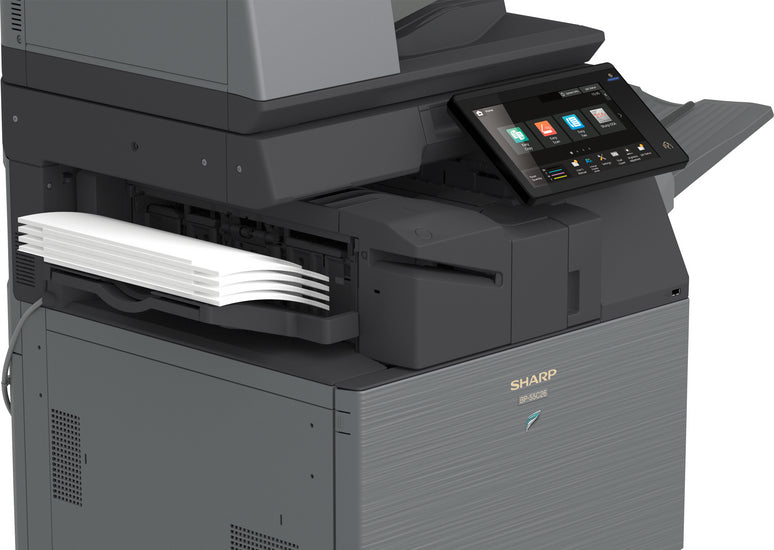

Output Capacity	500 sheets: Opt: BP-TU10 400-sheets (lower) centre exit tray+ MX-TR20N 100-sheet (upper) job separator.
Resolution (Output)	Print: 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode)
Memory	5GB (copy/print shared)
HDD Capacity	128GB SSD, Opt 512GB SSD
Dimensions (WxDxH)	609 x 662 x 860 millimetre
Weight	84 kilogram
Sharp OSA	6.0 (Opt: BPAM10 and/or BPAM11 required)

COPIER SPECIFICATION

Copy Speed	26ppm (A4), 15ppm (A3), 14ppm (SRA3)
E-Sort / SOPM	Yes / Yes
Continuous Copy	Max 9,999

ENVIRONMENTAL

Power Consumption	Max. 1.84 kW
TEC Value (Weekly)	0.31 kWh



 DOCUMENT FEEDER

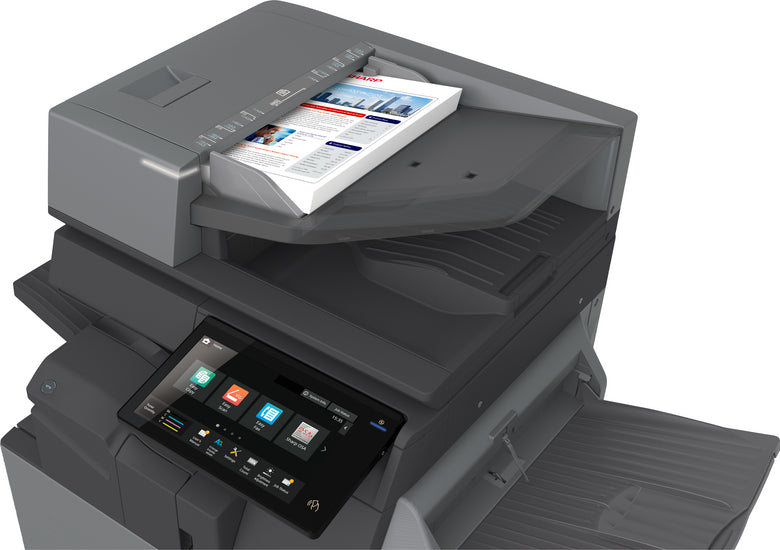

Document Feeder	Std. DSPF
Original Capacity	Max 300 sheets (80 g/m2)
Scan Speed (Max)	120 opm (1-sided), 240 opm (2-sided)

DOCUMENT FILING

Quick/Main Folder	Quick/ Main/ Custom Folder: Max: 5,000 pages or 500 files (STD); Quick Folder: Max: 10,000 pages or 1,000 files Main/Custom: Max. 20,000 pages or 3,000 files with BP-SD10 (512GB SSD)
Preview Thumbnails	Supported (includes Advanced Edit Mode)

PRINTER SPECIFICATION

Print Speed (Max)	26ppm (A4), 15ppm (A3), 14ppm (SRA3)
PDL (Emulation)	STD: PCL6, Opt: Adobe® PostScript®3 [MXPK13]
Interface	USB 2.0 (host, high-speed), USB 3.0 (host, super speed), 10Base-T/100Base-TX/1000Base-T; Optional wireless LAN (IEEE 802.11 a/b/g/n/ac)
Supported OS	Windows® 8.1, Windows® 10, Windows® 11, Windows Server® 2012(R2), Windows Server® 2016, Windows Server® 2019, Windows Server® 2022; Mac OS® 10.10 to 10.15, 11, 12, 13, 14 & 15 with Adobe® PostScript®3 [MX-PK13]
Utility Software (Download)	Status Monitor
Sharpdesk Mobile	Supported
Airprint Support	Opt: MXPK13 required



 NETWORK SCANNER

Resolution	Push scan: 100, 150, 200, 300, 400, 600 dpi; Pull scan 75, 100, 150, 200, 300, 400, 600 dpi (50 to 9,600 dpi via user setting)
Format	TIFF, XPS, JPEG*, PDF, Encrypted PDF; Opt: Compact PDF* with MXEB19; Opt: Office Format (docx, xlsx, pptx), PDF/A-1a, PDF/A-1b, Searchable PDF, TXT, RTF & UTF-8 with MXEB20. (*colour/greyscale only)
Destination	Desktop (NST-Lite), FTP, E-Mail, SMB Folder, USB, HDD, TWAIN / WIA compliant, I-Fax (SMTP)
User Registration	Max 2,000 registrations (Max. 500 addresses for one Group Key)
Utility Software (Download)	NST Lite

 CLOUD CONNECTIVITY

Requirement	Optional BPAM10 is required
Cloud Connectors	Microsoft® One Drive® for Business, Microsoft® SharePoint® Online, Microsoft® Teams®, Google Drive™, Box™ & Dropbox™
Email Connectors	Microsoft® Exchange (Online) & Google Gmail™
Microsoft Universal Print	Supported
Sharp Application Cloud Portal	Supported

FACSIMILIE

Facsimile Model	Opt : BPFX11
Communication Protocol	Super G3/ G3
Compression	MH, MR, MMR, JBIG
Inbound Routing	Yes (PDF, Single TIFF, Multi TIFF, XPS) to E-mail, FTP, SMB, Desktop, Fax & I-Fax.
PC Fax	Yes (For Windows only)
