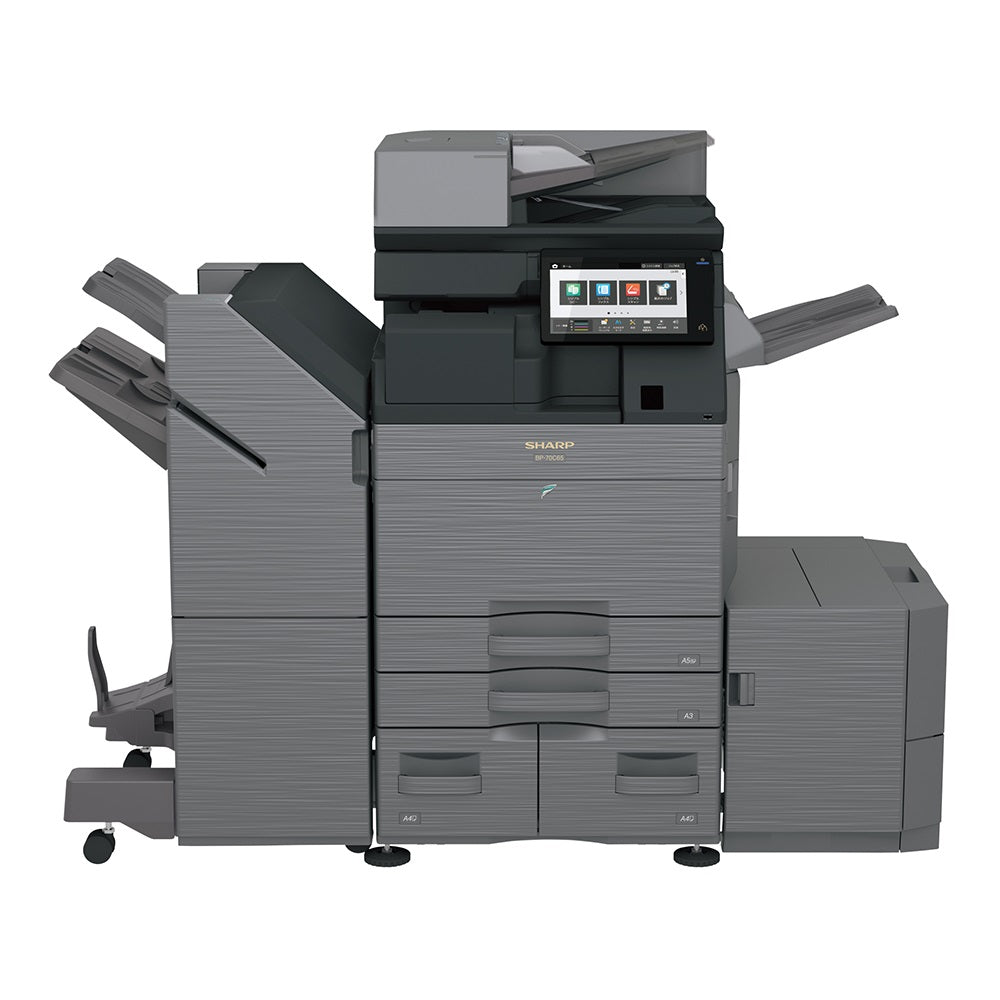

SHARP BP-70C55 A3 Colour Photocopier MFP
SHARP BP-70C55 A3 Colour Photocopier MFP
The SHARP BP-70C55 A3 colour MFP is a secure print solution for the future workplace. It delivers effortless connectivity, security and sustainability whilst offering superior functionality to facilitate hybrid working.
Ask for Quotation
General
| Engine speed: A4 Colour (ppm) | 55 |
| Engine speed: A4 B/W (ppm) | 55 |
| Engine speed: A3 Colour (ppm) | 26 |
| Engine speed: A3 B/W (ppm) | 26 |
| Paper size: Min.-Max. | A6R - SRA3 |
| Paper weight (g/m²) | 55 - 300 |
| Paper capacity: Std. (sheets) | 650 |
| Paper capacity: Max. (sheets) | 6300 |
| Warm Up Time (sec.) | 15 |
| Memory general: Min./Max. (GB) | 5 |
| SSD | STD / OPT |
| SSD Capacity (GB) | 256 / 512 |
| Duplex | STD |
| Power requirements - rated local AC voltage (Hz) | 200 - 240V, 50/60Hz |
| Power consumption (kW) | 1.84 |
| Dimensions (mm) | 609 x 662 x 860 |
| Weight (kg) | 86 |
Copier
| Original paper size: Max. | A3 |
| First copy out time: Colour (sec.) | 4.8 |
| First copy out time: B/W (sec.) | 3.7 |
| E-sort Std. | yes |
| E-sort Opt. | no |
| Continuous copy (Max. copies) | 9,999 |
| Scan resolution: B/W (dpi) | 600 x 600, 600 x 400, 600 x 300 |
| Scan resolution: Colour (dpi) | 600 x 600 |
| Print resolution (dpi) | 1200 x 1200, 600 x 600, 9600 x 600 |
| Gradation: Colour (equivalent levels) | 256 |
| Zoom range (%) | 25 - 400 |
| Preset copy ratios | 10 |
Document Feeder
| Original capacity (sheets) | 300 |
Scanner
| Network Scanner (Standard / Option) | STD |
| Scan method Push scan and Pull scan | yes |
| Push scan resolution (dpi) | 100, 150, 200, 300, 400, 600 |
| Pull scan resolution (dpi) | 75, 100, 150, 200, 300, 400, 600, 50 - 9600 |
| File formats | TIFF, PDF, PDF / A-1a, PDF / A-1b, encrypted PDF, compact PDF, JPEG, XPS, searchable PDF, Microsoft Office (pptx, xlsx, docx), TXT (UTF-8), RTF |
| Scan destination: Desktop | yes |
| Scan destination: FTP, Email | yes |
| Scan destination: Network folder | yes |
| Scan destination: USB memory | yes |
Document Filing
| Document filing (Standard / Option) | STD |
| Document filing capacity: main & custom folders (pages) | 20000 |
| Document filing capacity: quick file folder (pages) | 10000 |
| Stored jobs | Copy, print, scan, fax transmission |
| Storage folders | Quick file folder, main folder, custom folder (max. 1000) |
| Confidential storage | no |
Printer
| Resolution (dpi) | 1200 x 1200, 600 x 600, 9600 x 600 |
| Network Printer (Standard / Option) | STD Ethernet |
| Interface: Std./Opt. | USB 2.0, USB 3.0, 10Base-T/100Base-TX/1000Base-T, Optional secondary LAN support |
| Supported OS: Std. | Windows 8.1, 10, 11. Windows Server 2012, 2012R2, 2016, 2019. Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14, 10.15, 11, 12 |
| Network protocols | TCP / IP (IPv4, IPv6) |
| Printing protocols | LPR, Raw TCP (port 9100), POP3 (e-mail printing), HTTP, FTP for downloading print files, IPP, SMB, WSD |
| PDL: Std./Opt. | STD PCL 6, Adobe® PostScript® 3™ |
| Available fonts | 80 (PCL), 139 (Adobe PostScript 3) |
Fax
| Fax (Standard / Option) | OPT |
| Compression method | MH/MR/MMR/JBIG |
| Communication protocol | Super G3/G3 |
| Transmission time (sec.) | 2 |
| Modem speed (bps) | 33600 - 2400 |
| Transmission resolution (dpi) | STD 203.2 x 97.8 dpi / Ultra Fine 406.4 x 391 dpi |
| Document size: Min. | A5 |
| Document size: Max. | A3 |
| Memory (GB) | 4 |
| Grey scale (levels) | 256 |
| Dial registration: rapid/speed dial | 2000 |
| Broadcast transmission (Max. destinations) | 500 |
Finishing
| Output capacity: Max. (sheets) | 500 - 3000 |
| Staple capacity: Max. (sheets) | 65 |
| Saddle stitch | OPT |
| Off-set shifting | STD |
| Hole punch | OPT |
Wireless LAN
| Wireless LAN (Standard / Option) | STD |
| Compliant regulation | IEEE802.11 a/b/g/n/ac |
| Access mode | Infrastructure mode, Software AP mode |
| Security | WEP, WPA / WPA2-mixed PSK, WPA / WPA2-mixed EAP, WPA2-PSK, WPA2-EAP, WPA2 / WPA3-mixed PSK / SAE, WPA3 SAE, WPA2 / WPA3-mixed EAP, WPA3 EAP |
Toner Yield
| Black (pages at 5% coverage) | 40000 |
| Cyan (pages at 5% coverage) | 24000 |
| Magenta (pages at 5% coverage) | 24000 |
| Yellow (pages at 5% coverage) | 24000 |
