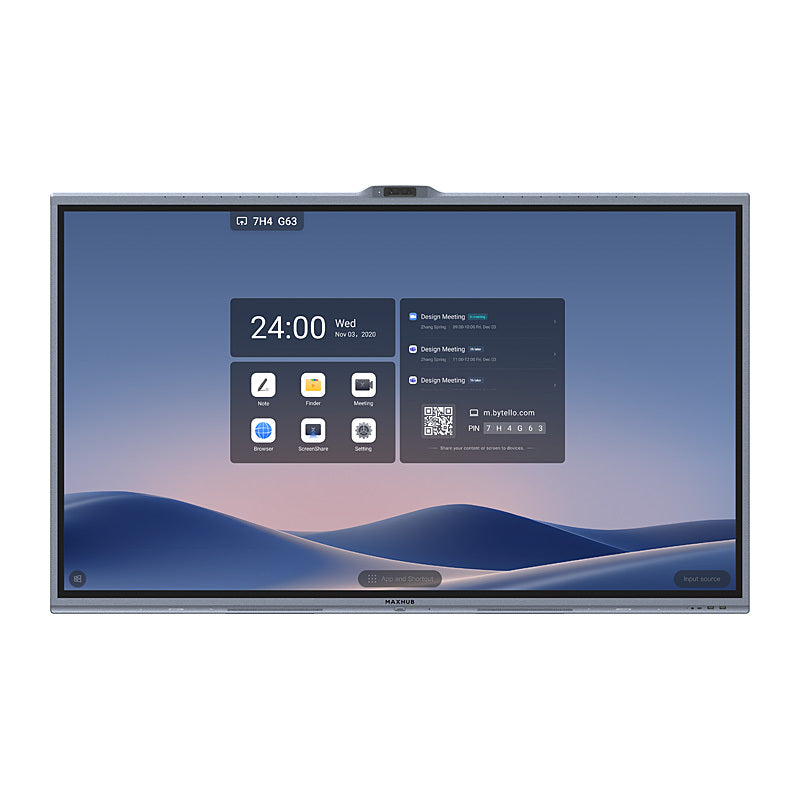

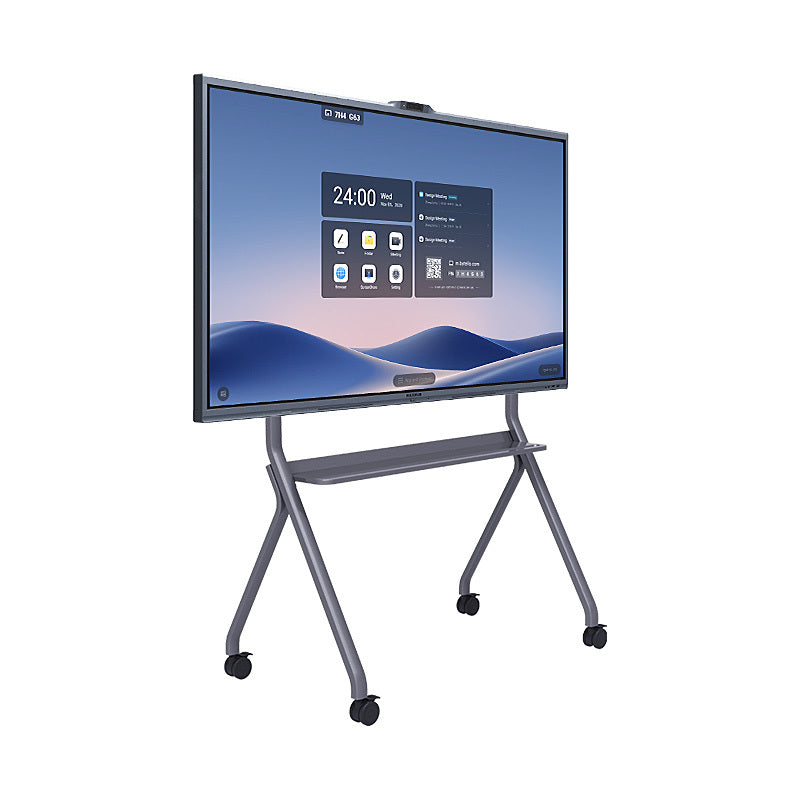

MAXHUB XBoard V7 Series 55''
MAXHUB XBoard V7 Series 55''
Couldn't load pickup availability
Ultra Advanced IR Technology, narrow bezel design, AI powered triple 50M camera with auto framing and speaker tracking, Anti-glare glass,16 mic array, Stereo speakers, Intelligent touchscreen technology, Palm rejection. OS Purchased seperately
Basic Features
- Display Type: 4K Ultra HD Flat Panel UHD Display
- Screen Size: 55 inches diagonal
- Resolution: 4K Ultra HD resolution for exceptional clarity
- Technology: Cutting-edge technology for vibrant colors and detailed visuals
- Interactive Capabilities: Intuitive touch interface for interactive use
- Versatility: Supports both portrait and landscape orientations
- Connectivity: Comprehensive connectivity options for seamless integration

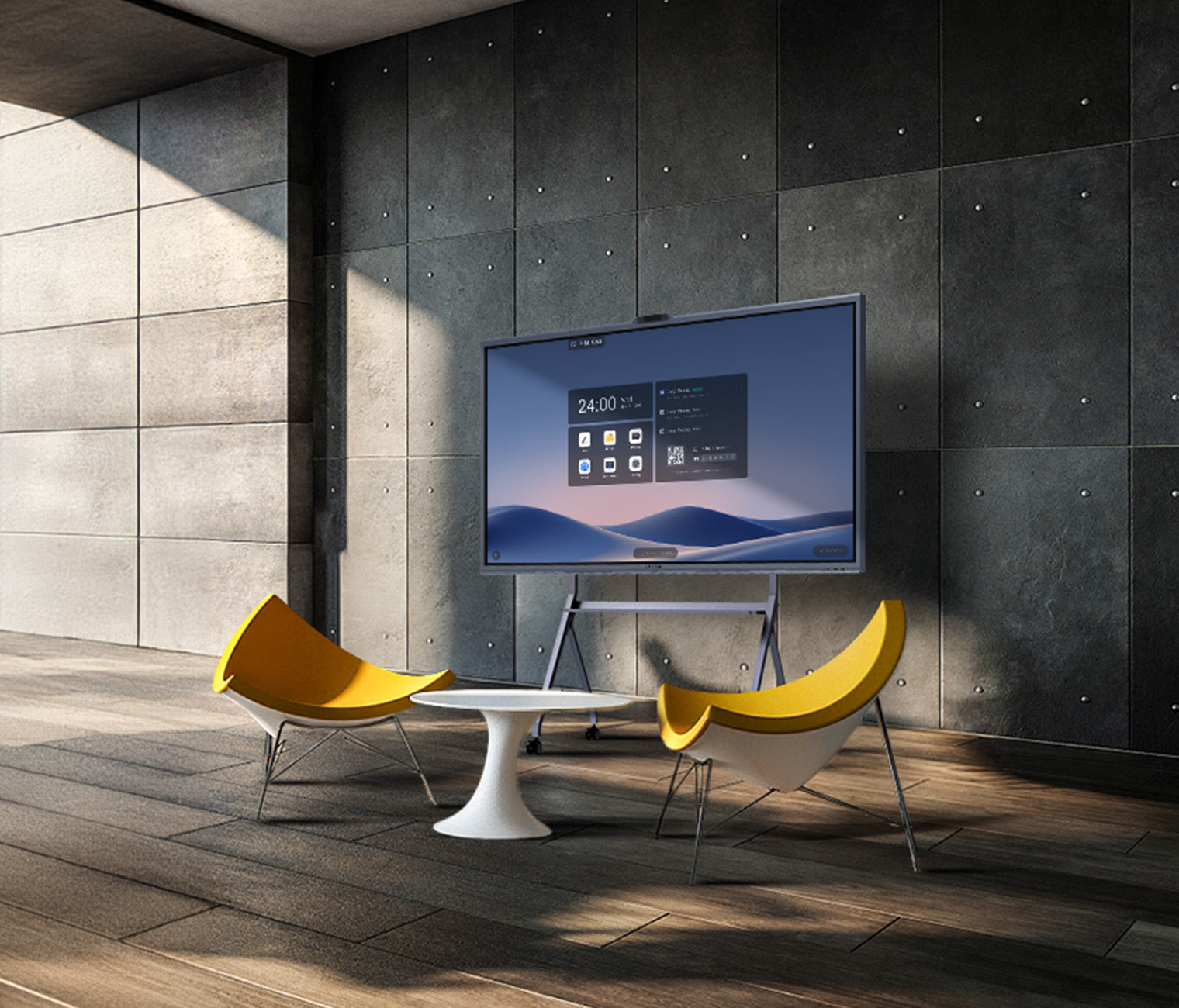

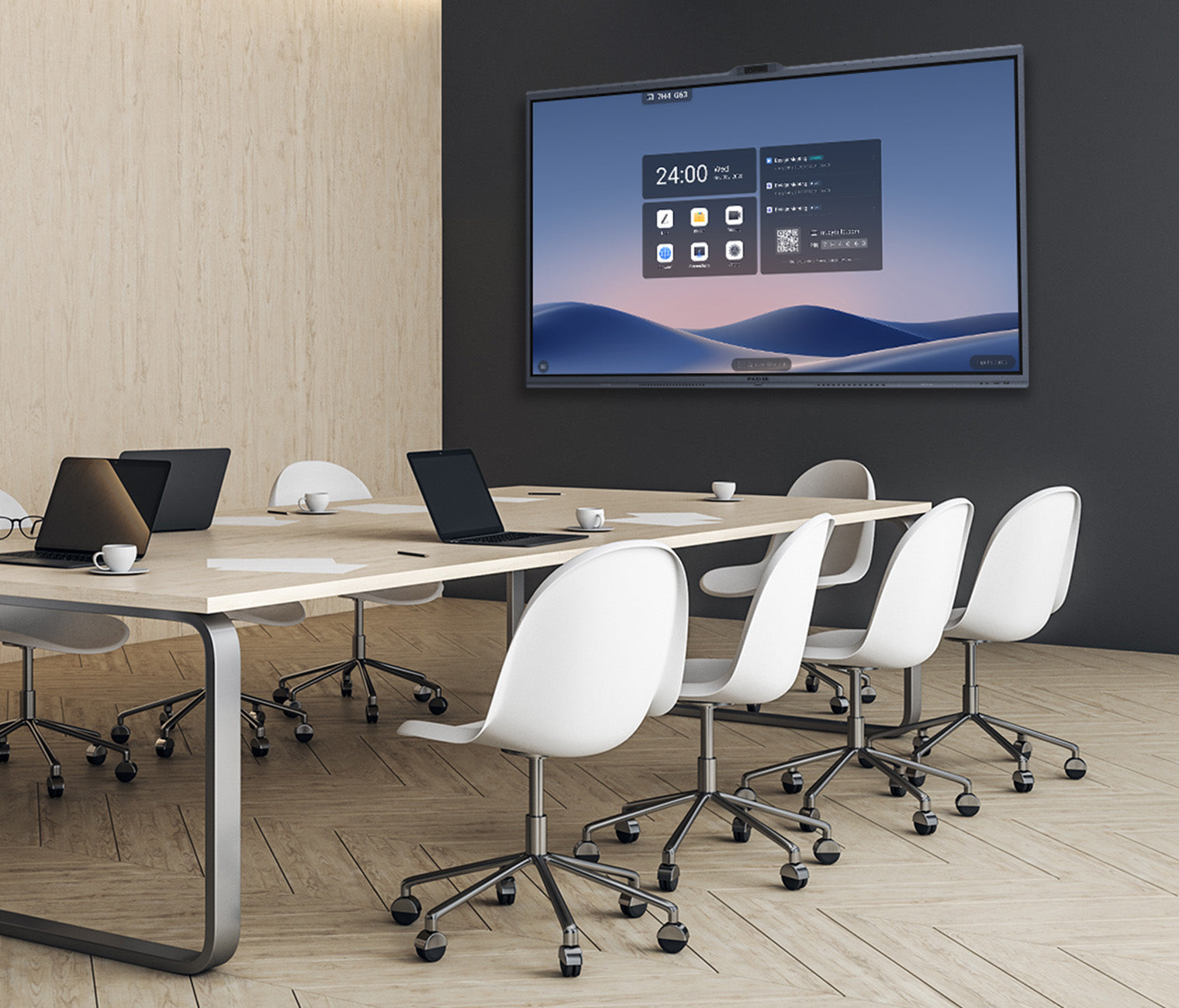

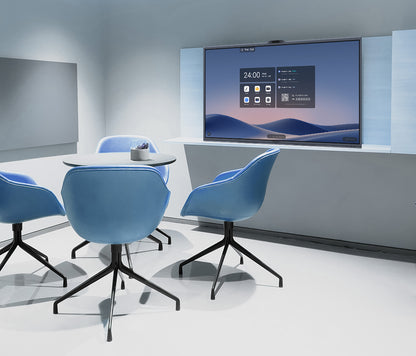

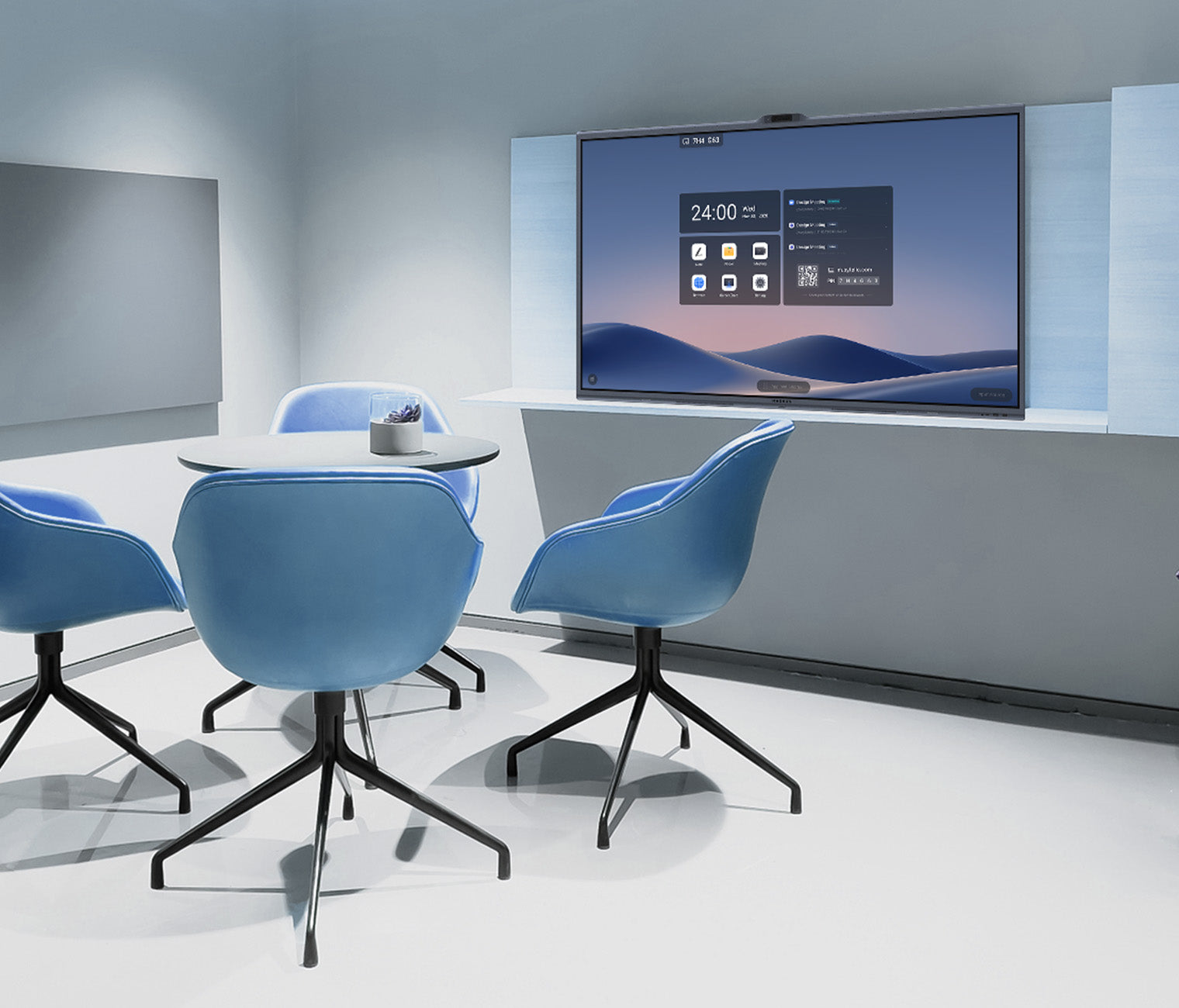

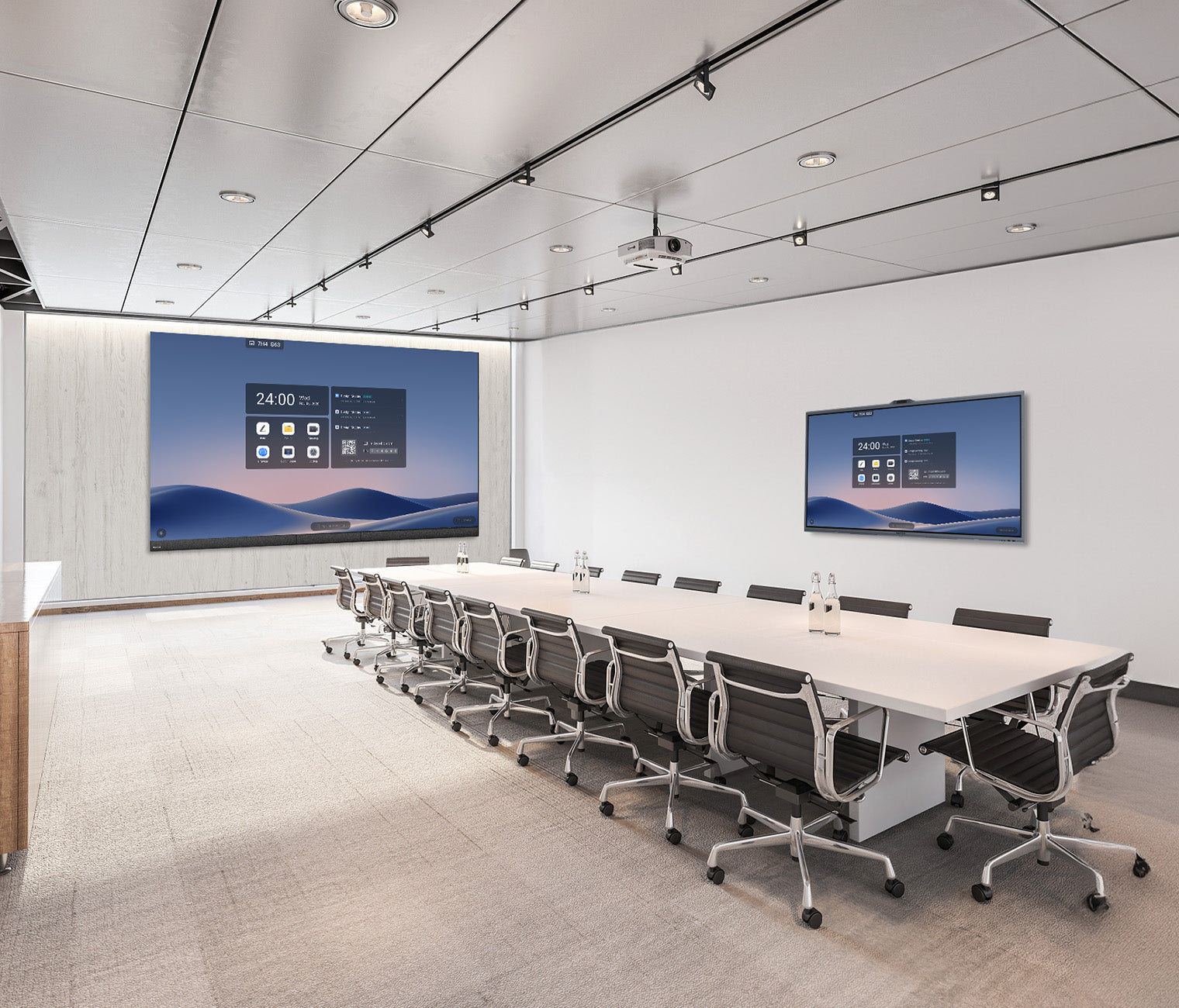

- Application: Ideal for classrooms, boardrooms, and digital signage
- Design: Sleek design that integrates well into various environments
- Usability: Designed for reliability and ease of use
Display |
| Screen Size (Inch) | 55 |
| Aspect Ratio | 16:9 |
| Panel | ADS |
| Backlight | DLED |
| Brightness (Typ.) | 350 nits |
| Glass | Zero parallax 3mm thickness 9H tempered |
| Surface Technology | 25% haze Non-glare technology |
| Resolution | 3840 × 2160 |
| Refresh Rate | 60 Hz |
| Contrast Ratio | 1200:1 (typ.) |
| Viewing Angle (H × V) | 178° / 178° |
| Color Gamut | 90% NTSC |
| Display Orientation | Landscape |
| Response Time | 8 ms |
| Life Time | ＞50,000 hours |
| Operation Hours (Hours / Day) | 16 / 7 |
| Display Color | 1.07B (10 bit) |
| Color Accuracy | Delta E ≤ 1.5 |
| Sensor | Ambient light sensor Ultrasonic detection sensor |
Touch System |
| Touch Technology |
Intelligent Touchscreen Technology (infrared recognition) |
| Touch Point |
50 points touch |
| Object Recognition Range | ≥1.5 mm |
| Accuracy | ±0.5 mm |
| Response Time | ≤2.5 ms |
| Writing Height | ≤1 mm |
| System (Touch Return) |
Windows11/Windows10/Windows8/ Windows7/Android/ Linux/Mac OS X/Chrome OS |
| Feature |
Windows Ink / Direct Annotation / Palm Rejection / Sharp Erase / Multi-input Recognition / Handwriting Recognition |

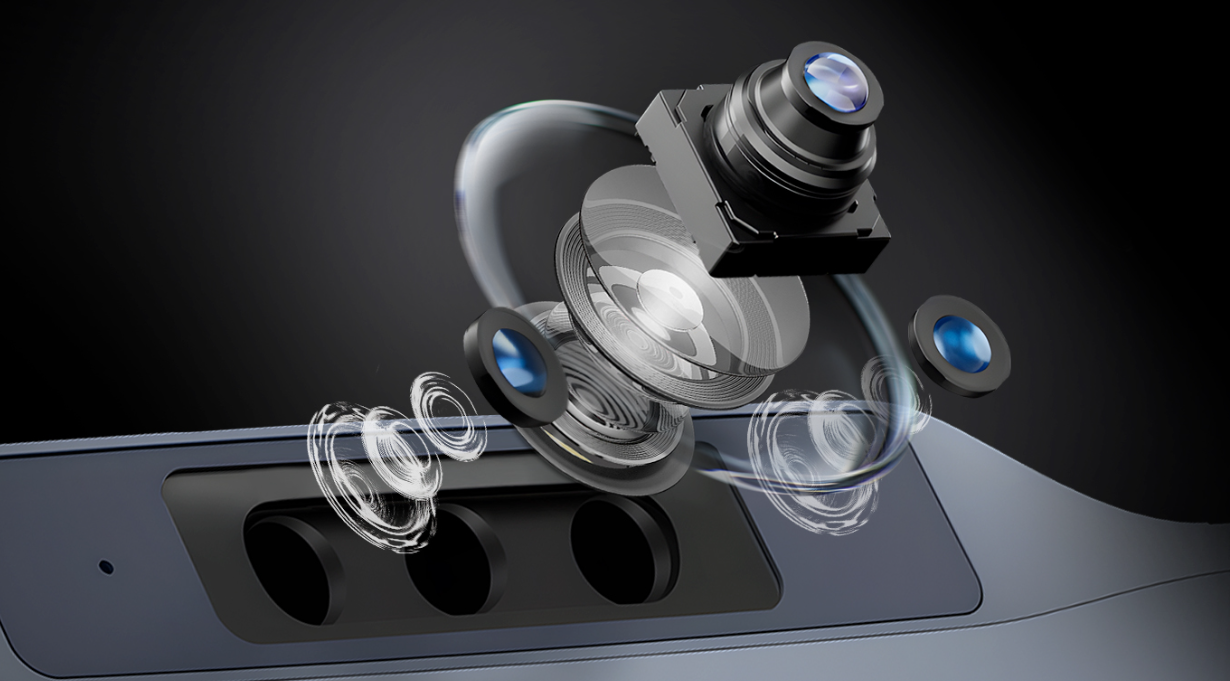

Camera |
| Quantity | 3 |
| Resolution |
50 MP + 50 MP + 50 MP (Panorama + Telephoto + Telephoto) |
| Zoom |
2x optical zoom 5x digital zoom |
| Field of View |
99° (Diagonal) 86° (Horizontal) 69° (Vertical) |
| Position | Built-in ejection |
| Feature |
Personalized presets, Auto framing, Speaker tracking Multiple-speaker tracking, Intelligent focus |
Audio |
|
| Sound Channel | 2.1 |
| Speaker Power | 2×10W+20W |
Microphone |
| Quantity | 16-mic array |
| Pick-up Angle | 180° |
| Pick-up Range | 0~15m |
| Feature | Intelligent audio fence AI spatial sound AEC (Auto echo cancellation) ANC (AI noise cancellation) AGC (Auto gain control) |
Feature |
|
| System OS | MAXHUB OS 7.0 powered by Windows |
| Screen Share | MAXHUB Share Support BYOM / Miracast / Airplay / Chromecast / P2P |
| Device Management | MAXHUB Pivot |
| Protocol Control | RS232 / IP control Supports integration with Crestron / Extron / Q-sys |
| Special Features | Microsoft Intune |
Certification |
| Safety | IEC 62368-1 |
| EMC | Class B |
| Environment | Energy Star |
| IP Rating | IP5X design standards |
