MAXHUB E series E8630 86''

MAXHUB E series E8630 86''

$5,700.00
$5,700.00
Sale Sold out

SPECIFICATION

Product Model

 E8630


Display



Diagonal Size (inch) 86


Aspect Ratio 16:9

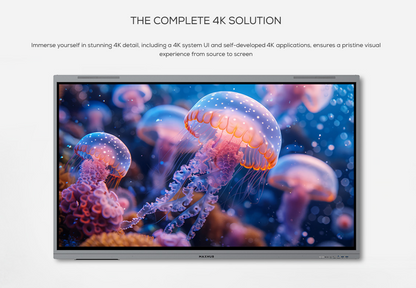

Resolution 3840(H)×2160(V)


Panel Brightness 400 nits (typ.)
450 nits (max.)


Contrast Ratio 3,000:1 (typ.) < br> 50,000:1 (dynamic)

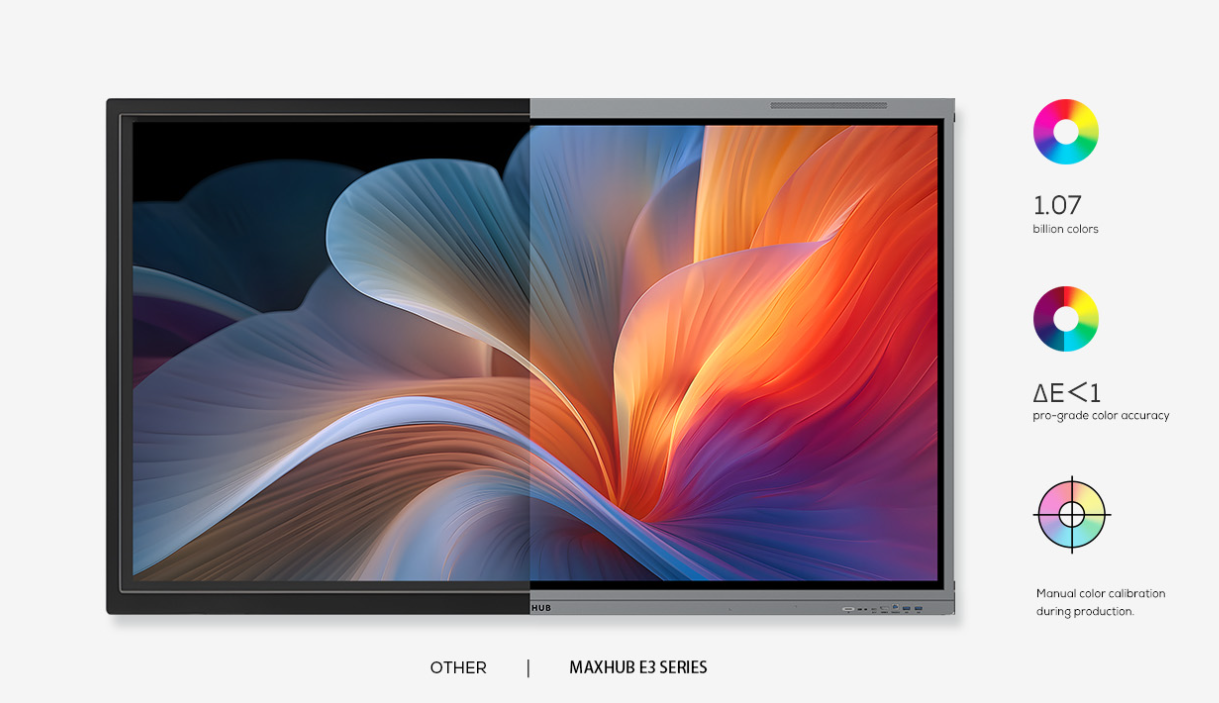

Color Depth 1.07B (10bit)


Color Gamut (typ.) 98% sRGB


Color Accuracy ΔE≤1


Surface Technology Anti-glare, 25% haze

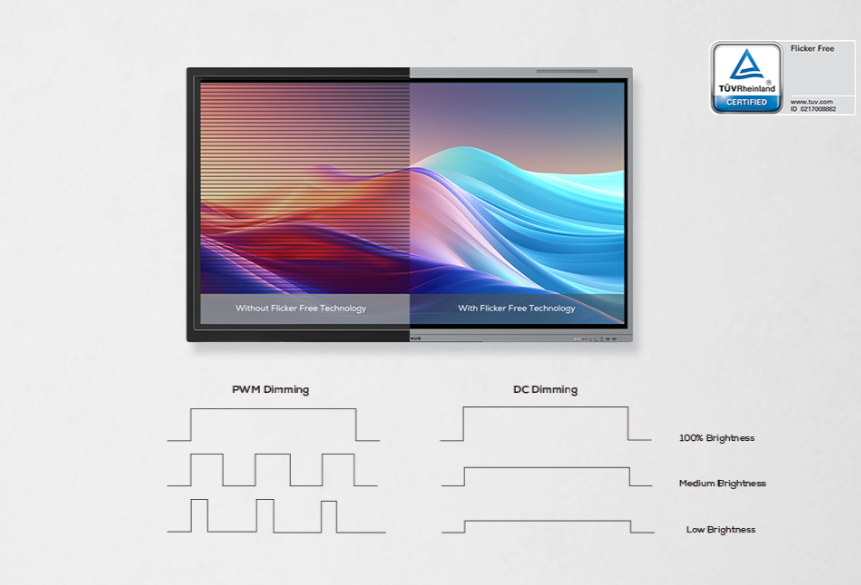

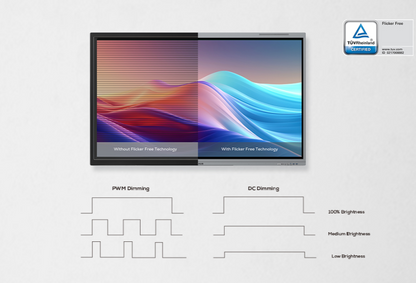

Eyes Care TÜV Flicker Free

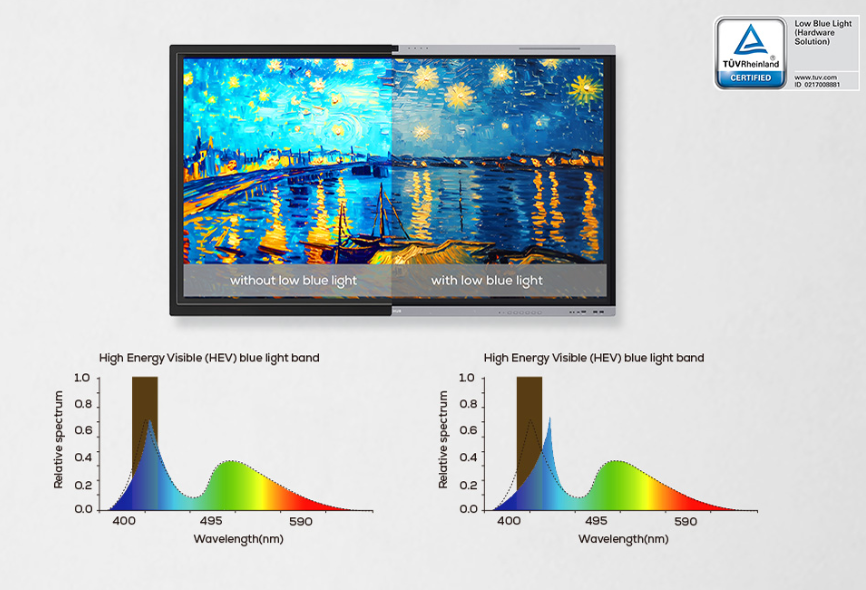

TÜV Low Blue Light


Refresh Rate 60Hz


Response Time 8ms


Backlight Unit DLED


Touch System
Touch Technology Infrared recognition


Touch Point 40 points touch


Accuracy ±1.5mm


MAXHUB Think&Ink Yes


Built-in System
Operating System Android 14.0


Certification Google EDLA certification


RAM 8GB


ROM 128GB


CPU A72×4+A53×4 octa-core, 2.2GHz


GPU Mali G52 MC3


Connectivity
Input HDMI IN × 3
USB 2.0 × 1
USB 3.0 × 4
Touch × 2

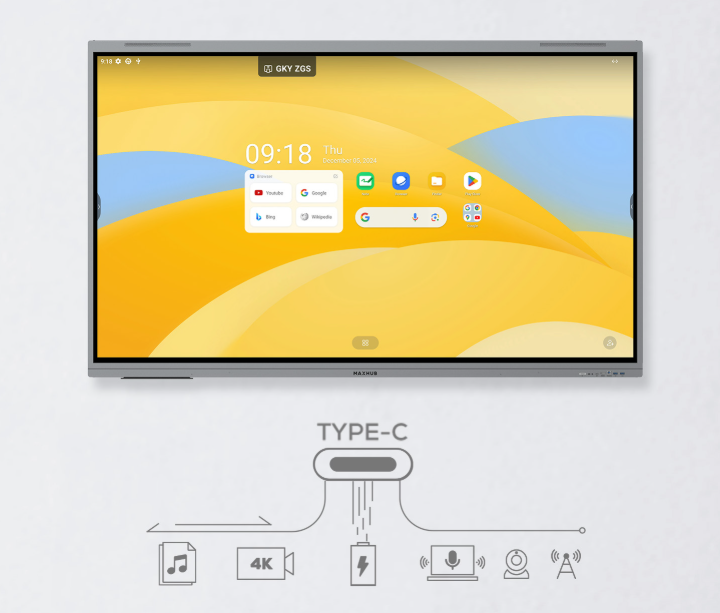

USB Type-C × 2
DP IN × 1
AUDIO IN × 1
VGA IN × 1
RS232 × 1
RJ45 IN × 1
TF Card Port × 1


Output HDMI OUT × 1
AUDIO OUT × 1
SPDIF × 1
RJ45 OUT × 1


OPS Slot Module slot × 1


Wi-Fi Module Slot Module slot × 1


Wi-Fi Module (SI07B) Wi-Fi 6 supported
802.11ac/b/g/n/a/ax, 2.4GHz/5GHz


Bluetooth 5.2


Audio

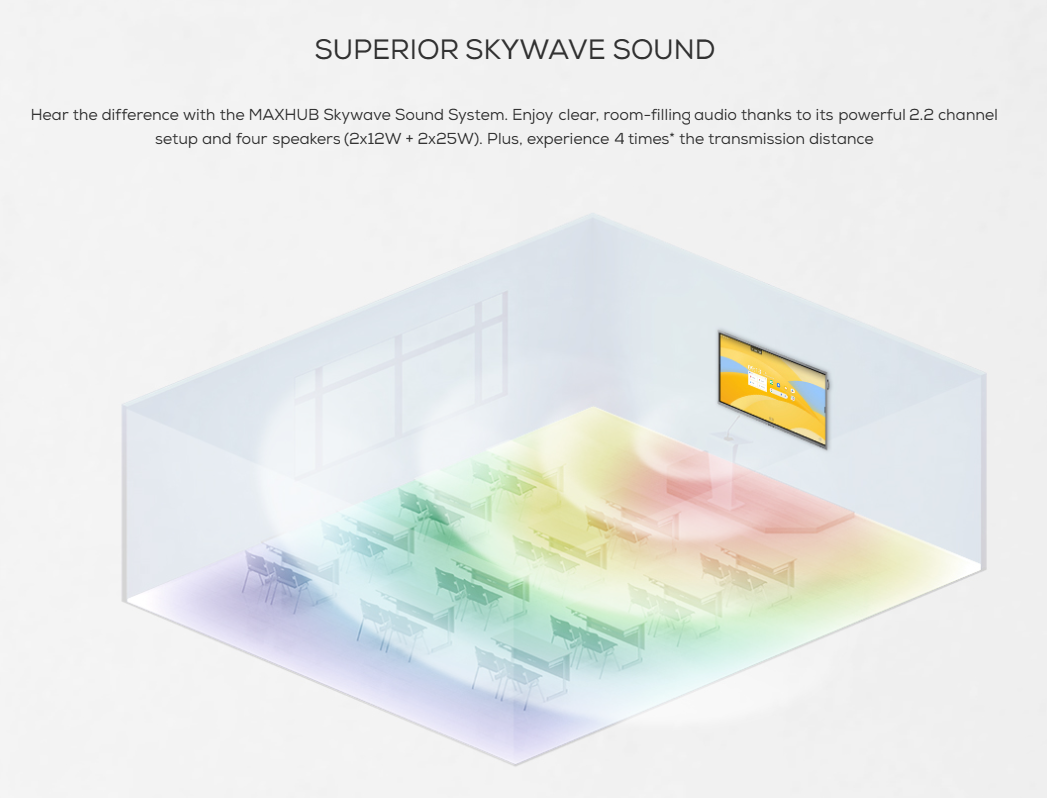

Audio System SkyWave Sound System


Sound Channel 2.2


Speaker Power 2×8W+2×18W (output)
2×12W+2×25W (maximum)


Sound Pressure Level 88 dB (1W, 1m)


Power
Power Supply 100-240V~ 50/60Hz 4.5A


Power Consumption (standby) ≤0.5W


Power Consumption (typ.) 190W


Power Saving Energy Star Certification


Optional Module
USB Camera UC W31


Video Bar UC S07


OPS Module OPS62A/OPS72A


Sensor Box WL10C


Mobile Stand ST33M, ST23G, EST09
