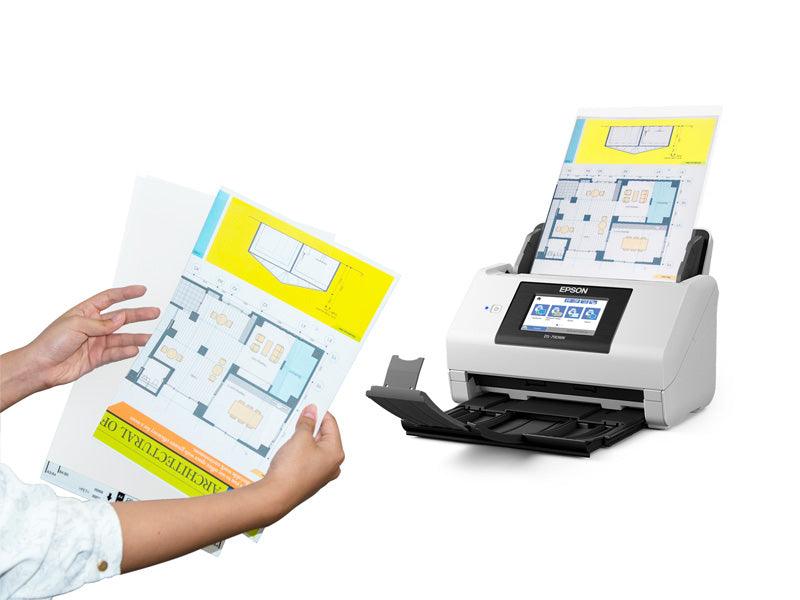

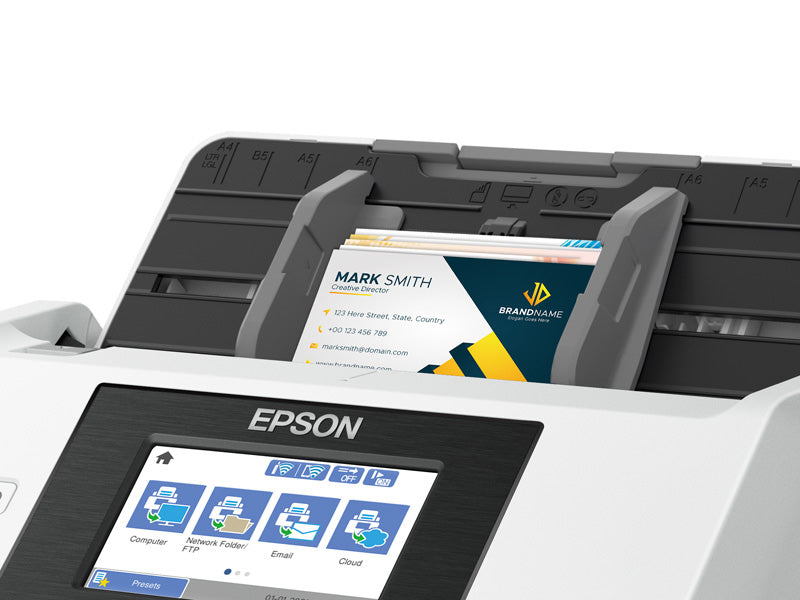

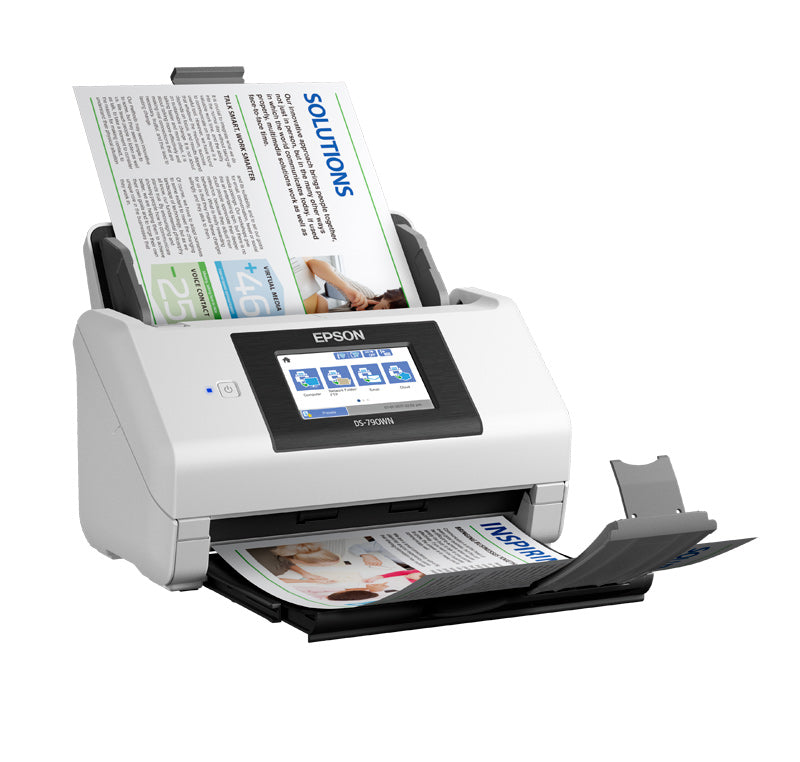

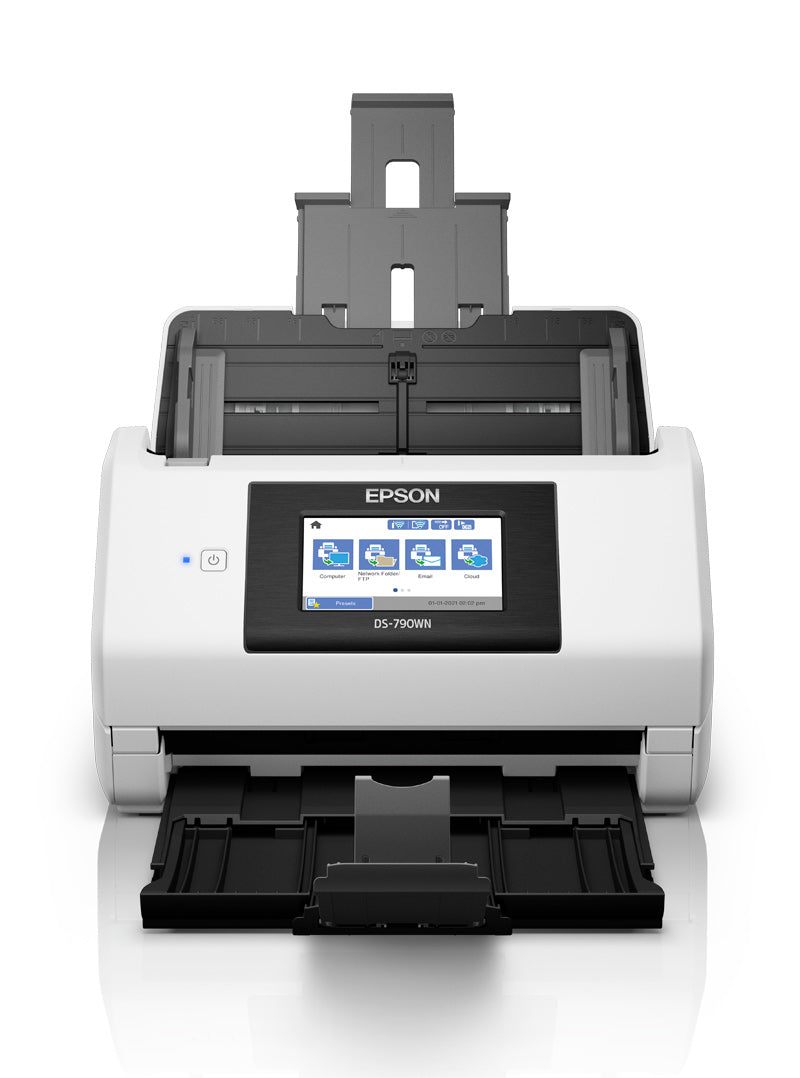

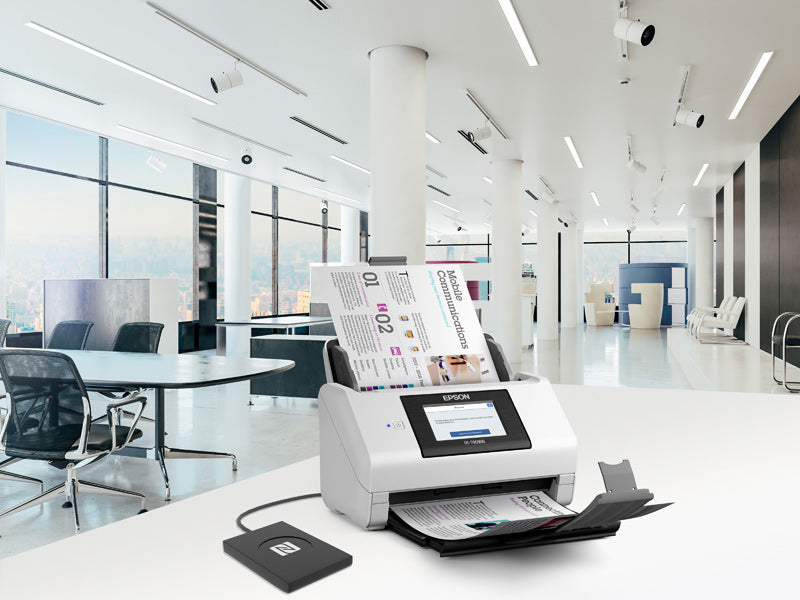

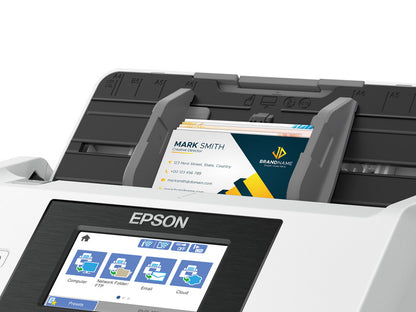

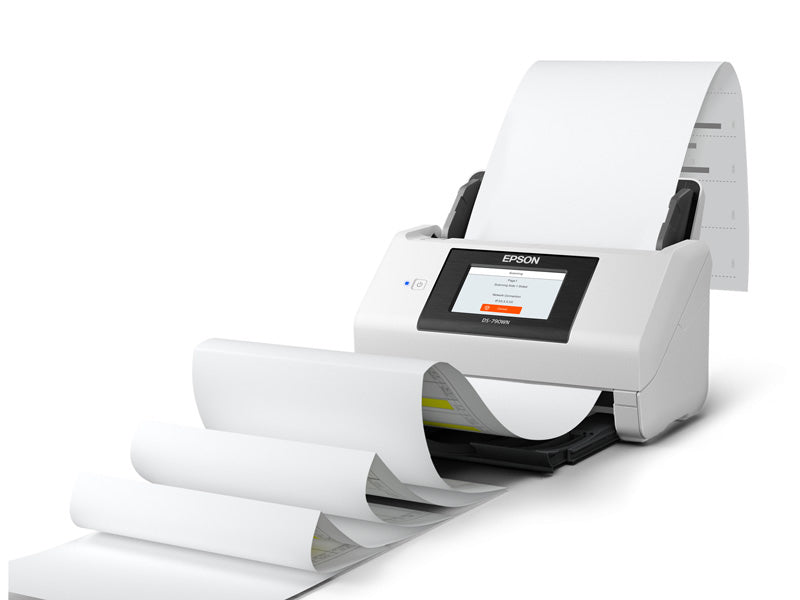

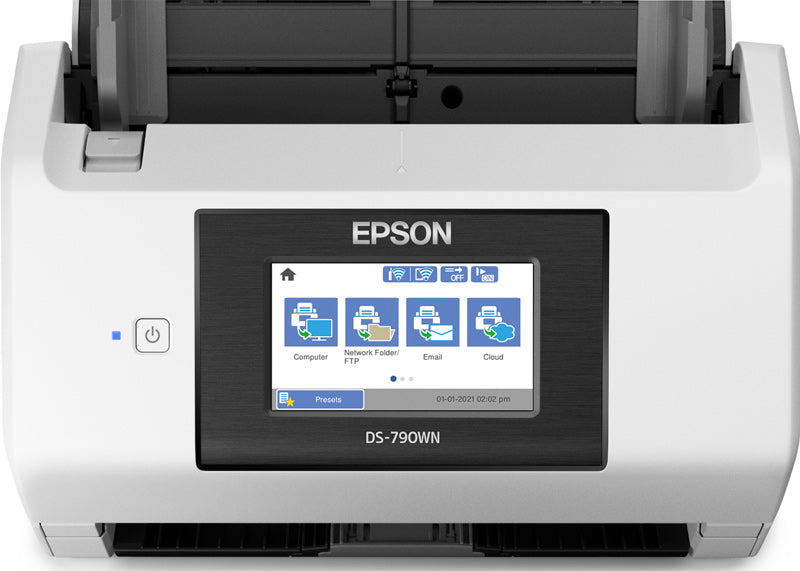

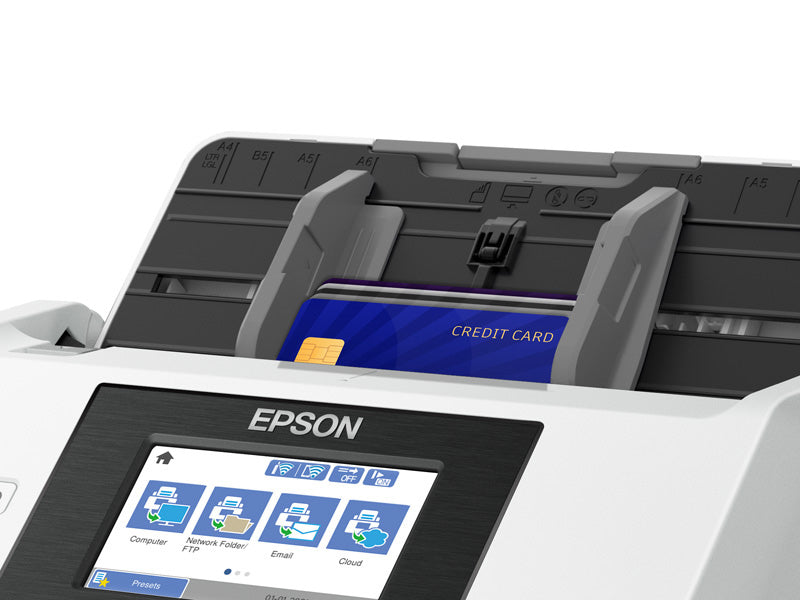

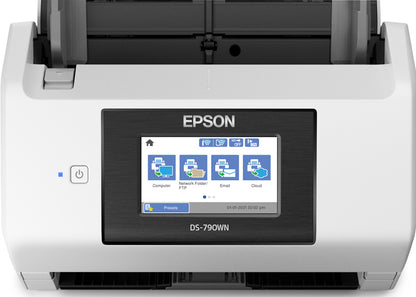

Swift, versatile and powerful, the EPSON WorkForce DS-790WN combines network connectivity, enhanced security features and PC-free scanning so you can manage your business solutions with confidence. Designed for reliability plus ease-of-use, the DS-790WN delivers high-quality scans at up to 45 ppm / 90 ipm1 with a peak daily duty cycle of up to 7,000 sheets2, one-pass duplex scanning and a high-volume 100-page ADF that accommodates business and ID cards as well as extra-long pages up to 609cm (240-inches). The intuitive 10.9cm (4.3 inch) colour LCD touchscreen allows you to access multiple jobs, and email or scan to a USB drive, your network3 or cloud storage services4,5 without the need for a computer. Gain full control of your documents with individual user authentication6 via the touchscreen or an optional card reader, including customisable scan settings and access to personal usage records.
SCANNER
SCANNER TYPE
Sheet Feed, one pass duplex A4 colour scanner with LCD touchscreen
OPTICAL RESOLUTION
600 x 600 dpi
MAXIMUM INTERPOLATED RESOLUTION
1200 dpi
LIGHT SOURCE
3 Colour RGB LED
COLOUR SCAN MODE (Output bit depth)
30-bit input / 24-bit output
GREYSCALE SCAN MODE (Output bit depth)
30-bit input / 24-bit output
LIGHT SOURCE
Readyscan LED Technology
PAPER / MEDIA HANDLING
DOCUMENT SIZE

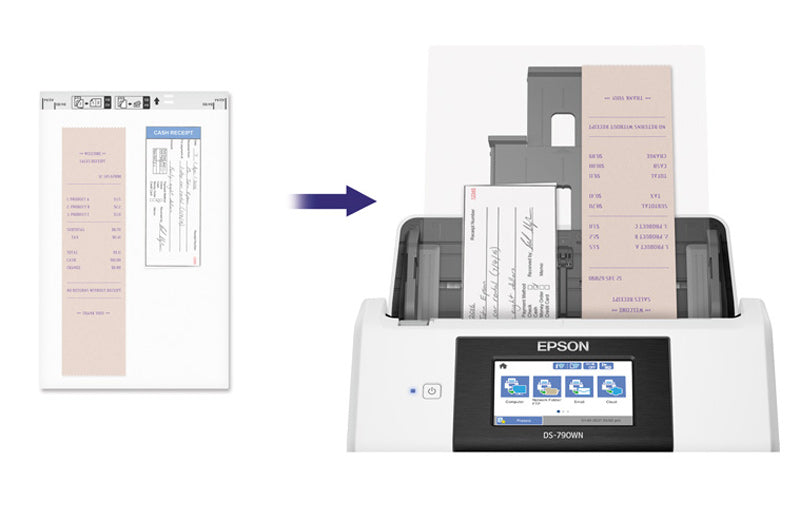

Plastic card (in portrait scanning only), A4, A5, A6, B5, business card, letter, legal and custom sizes (can set for up to 5 different paper types), A3 size supported by digital stitching ADF minimum size: 50.8mm x 50.8mm (horizontal x vertical) ADF maximum size: 215.9mm x 6096mm (horizontal x vertical)
Document Capture Pro 2.0, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2
SUPPORTED PLATFORMS
OPERATING SYSTEMS
Windows® 11, 10, Windows 8/8.1, Windows 7, Windows Server®7 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2003 R2, Windows Server 2003 SP2, Mac OS X® 10.9.5x – macOS® 12.x
ETHERNET SETTINGS
10BASE-T/100BASE-TX/1000 BASE-T / Full duplex / Half duplex
INTERFACE
USB 3.0, WiFi
PROTOCOL SUPPORT
TCP/IP, DHCP, DNS, SNMP, SLP
ENVIRONMENTAL CONDITIONS
TEMPERATURE
Temperature (Operating): 41° to 95°F (5° to 35°C) Storage: -13° to 140°F (-25° to 60°C) Humidity (Operating): 15 – 80% (no condensation)
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE
AC 100-240 V
POWER CONSUMPTION
Operating: 15 W Ready mode: 5 W Sleep mode: 1.3 W Power Off: 0.1 W
