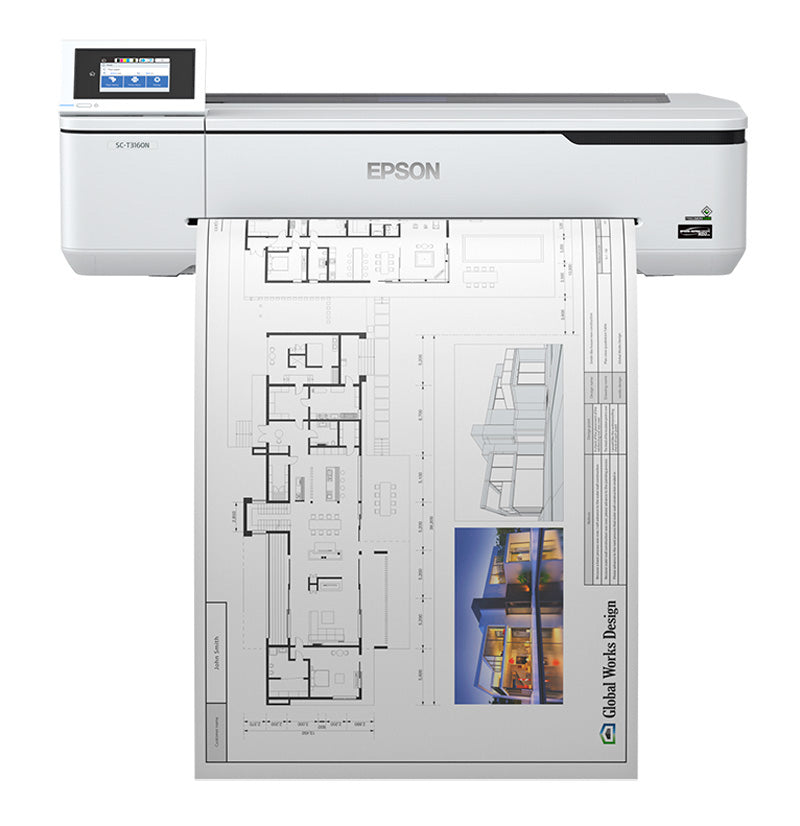

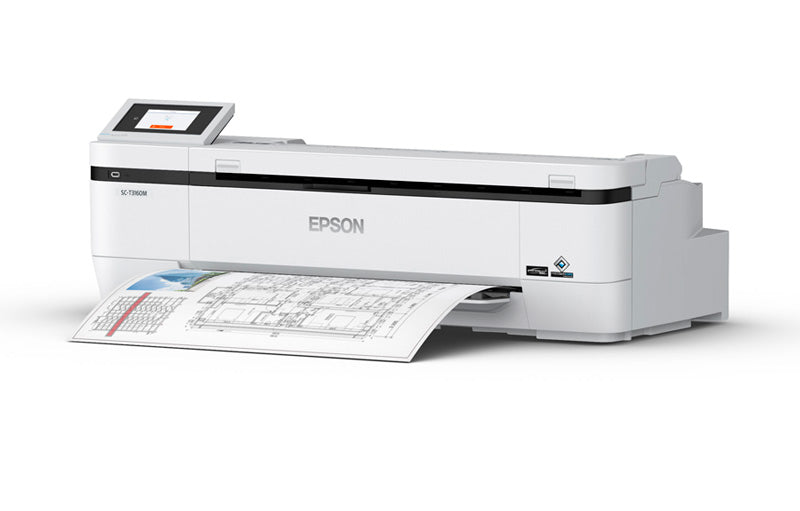

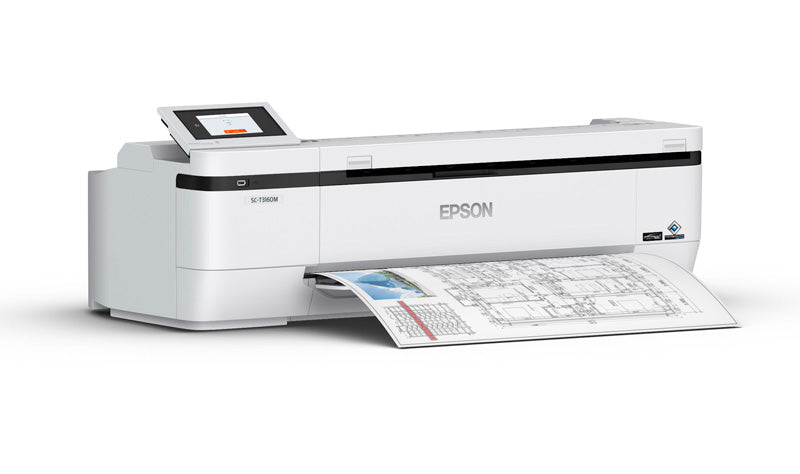

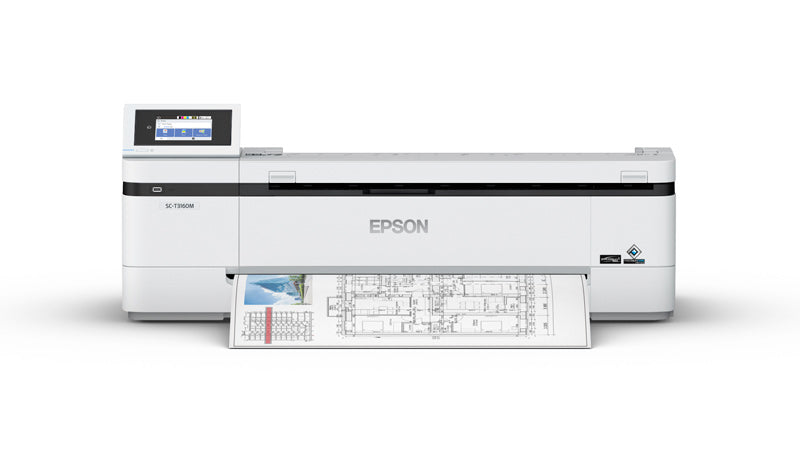

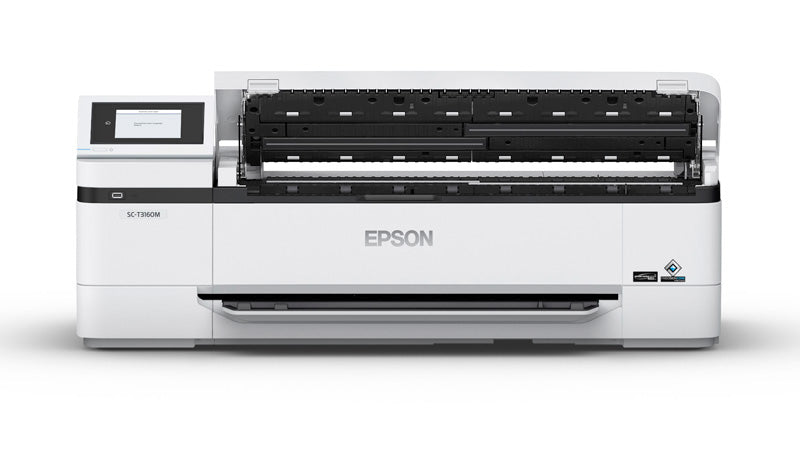

Epson SureColor T3160M - 24" Large Format Printer

The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper, to photographic media. They support high resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters and displays.

TECHNICAL & CAD - PRINTER
PRODUCT NAME	SureColor T3160M - 24" MFP

SIZE
Max Print Width	24 inch wide (610mm)

PRINT TECHNOLOGY
Print Head	PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes	Uni & Bi-directional
Nozzle Configuration	800 per colour
Maximum Resolution	2400dpi x 1200dpi
Minimum Ink Droplet Size	4.0pl

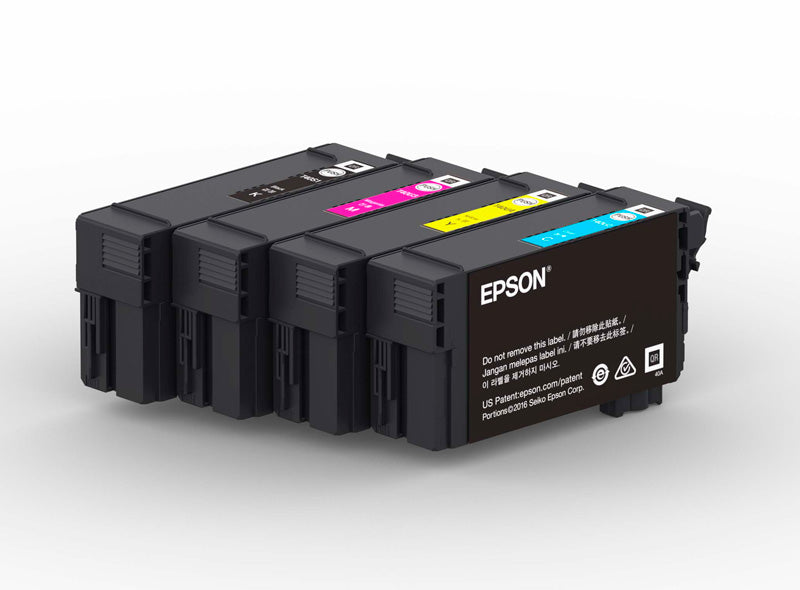

INK SYSTEM
Family	Epson Ultrachrome® XD2
Type	All-Pigment Aqueous
Colours	C+M+Y+K
Cartridges	CMY 26/50ml K 50/80ml

PERFORMANCE (per Sheet)
CAD A1	34sec
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type.

SCAN PERFORMANCE (per Sheet)
Max Scan Speed	3.81 cm/s or 1.5 ips (Colour) 11.43 cm/s or 4.5 ips (Mono)
Max Copy Speed	77s per A1 sheet Colour 60s per A1 sheet Mono
Scan speeds represent feed times only for a standard CAD image on plain paper @200dpi in TIFF format and are provided for comparison purposes only. Additional processing will be required with the total time taken for completion dependent on the media & image type, media orientation, image processing, image scaling and other factors. Copy times represent the total scan, processing and print time for the image shown scanned long edge and printed on plain paper. Individual results will vary depending on media & image type, media orientation, image processing, image scaling and other factors.

MEDIA SUPPORT
Roll Format	Single roll top loaded spindle, 2" core, 0.05-0.21mm thick, 329-610mm wide, 119mm max diameter, 4.2 kg max weight
Sheet Format	Top loaded A4-A1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick
Auto Cutter	Iuilt rotanbry type
Manual Double Sided Printing	Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.

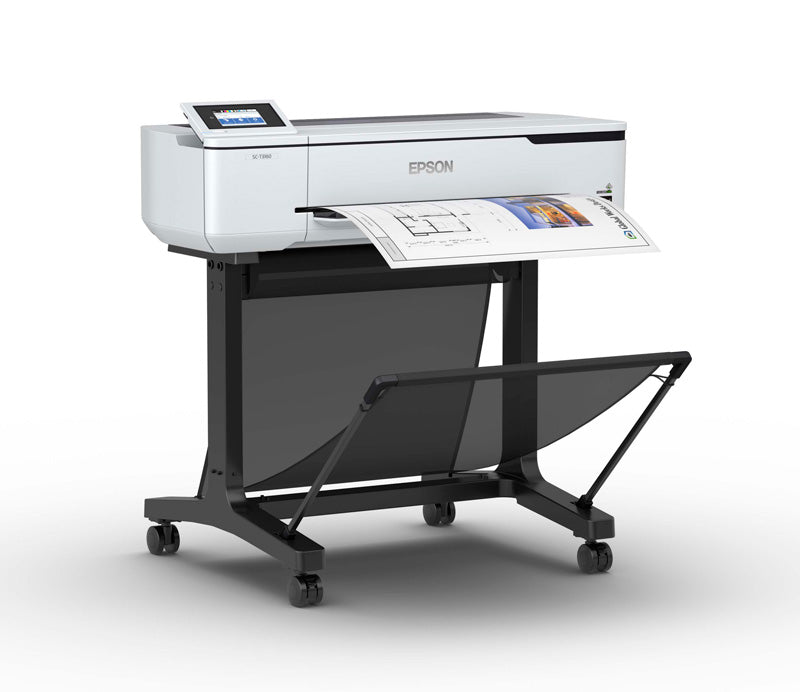

Output	Single sheet hold feature Supplied with an A4/A3 output tray Floor-standing model and optional Printer Stand incorporates a media basket

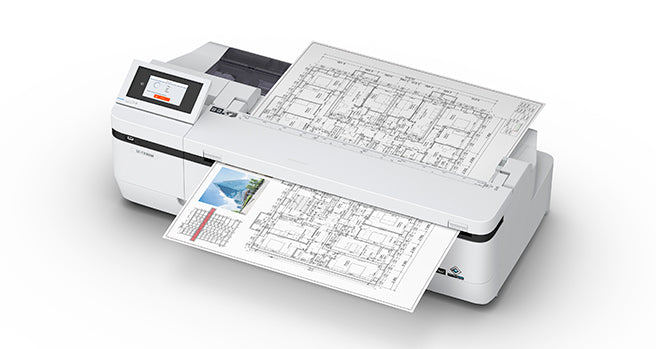

SCAN & COPY SUPPORT
Media Handling	Single Sheet Front Loading
Media Types	Plain, Matte, Recycled, Glossy paper, Film, Newspaper & Tracing Paper 0.064-0.8mm or 0.55mm (with optional carrier sheet which is used for Film, Thin paper or fragile materials) thick, 148mm-610mm wide, 148-2720mm long
Document Types	Line & Text, Blueprint & Blueprint inverted, Tracing Paper & Poster
Scan To Formats	JPEG, PDF & TIFF
Copy Function	1-99 Sheets 25-400% scaling, Auto Fit

OPERATION
Control Panel	4.3" Colour LCD touch screen
Control Code	ESC/P Raster, HP/GL/2 & HP RTL* 1
Connectivity	USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Compatibility	Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory	1GB RAM
Scanner Support	USB interface with integrated control & auto enlargement Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes Supports A2, US-C (17x22"), B2, US-D (22x34"), A1 & custom (89-610mm wide) output page sizes Supports Epson DS-530, DS-6500 & DS6000 scanner models
Physical (WxHxD)	Desktop: 970 x 505 x 292 mm, 33.4 kg (no consumables, media or options, no output tray, ASF closed) Floor Standing: 970 x 696 x 974 mm, 44.4 kg (closed basket, no consumables, media or options, no output tray, ASF closed)
ARM 64 Processor Compatibility	IMPORTANT NOTICE: A number of printer drivers have been found to have compatibility issues with Windows PCs that feature an ARM 64 processor. Epson is currently reviewing our current and recent model ranges with a view to issuing updates. Unfortunately, although we will roll these out as quickly as we can the process is not expected to be completed until early 2026. In the interim we do not recommend operation with this type of equipment.

ENVIRONMENT
Operational Temp	10° to 35° C
Operational Humidity	20 to 80% (no condensation)
Power Supply	100 - 240 V AC, 50/60 Hz
Power Consumption	28W Operating, 8W Standby, 1.6W Sleep
Operating Noise	49dB

SHIPPING INFO
Packaging (WxDxH)	Desktop: 1096 x 598 x 504 mm, 45 kg
What’s in the Box	Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD.
Delivery & Install	Some assembly and configuration may be required. A significant proportion of the included ink will be required to 'prime' the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations.
Service & Support	Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty. terms and travelling charges may apply for equipment located outside major metro areas.

OPTIONAL ACCESSORIES

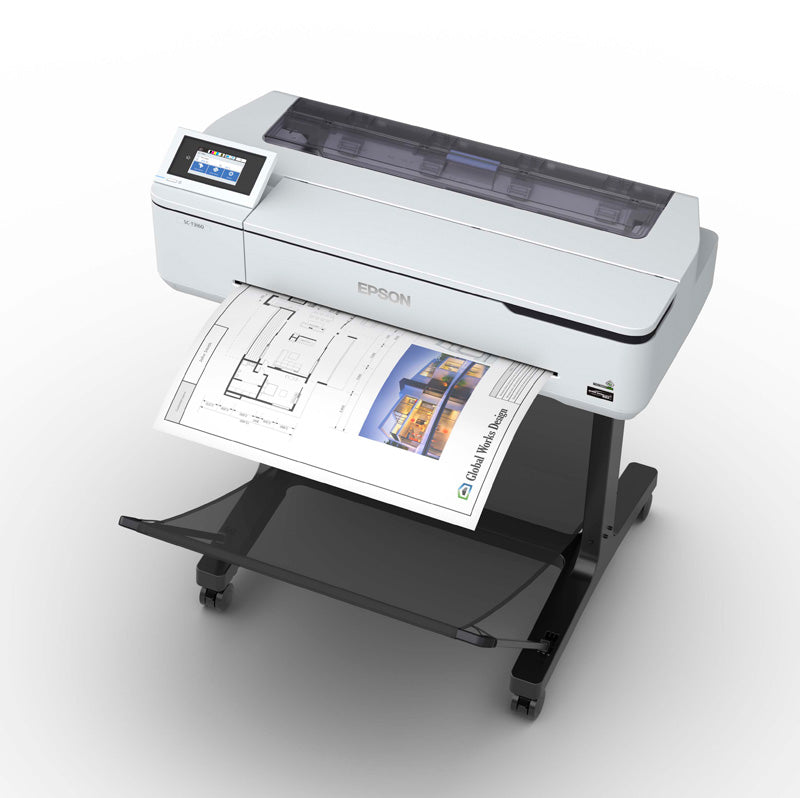

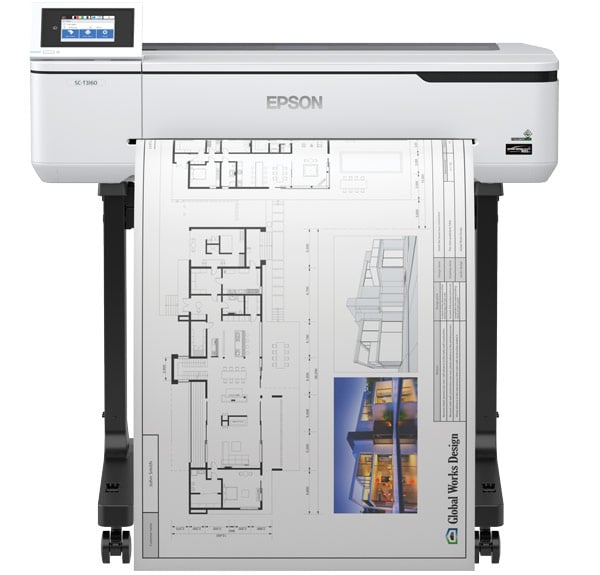

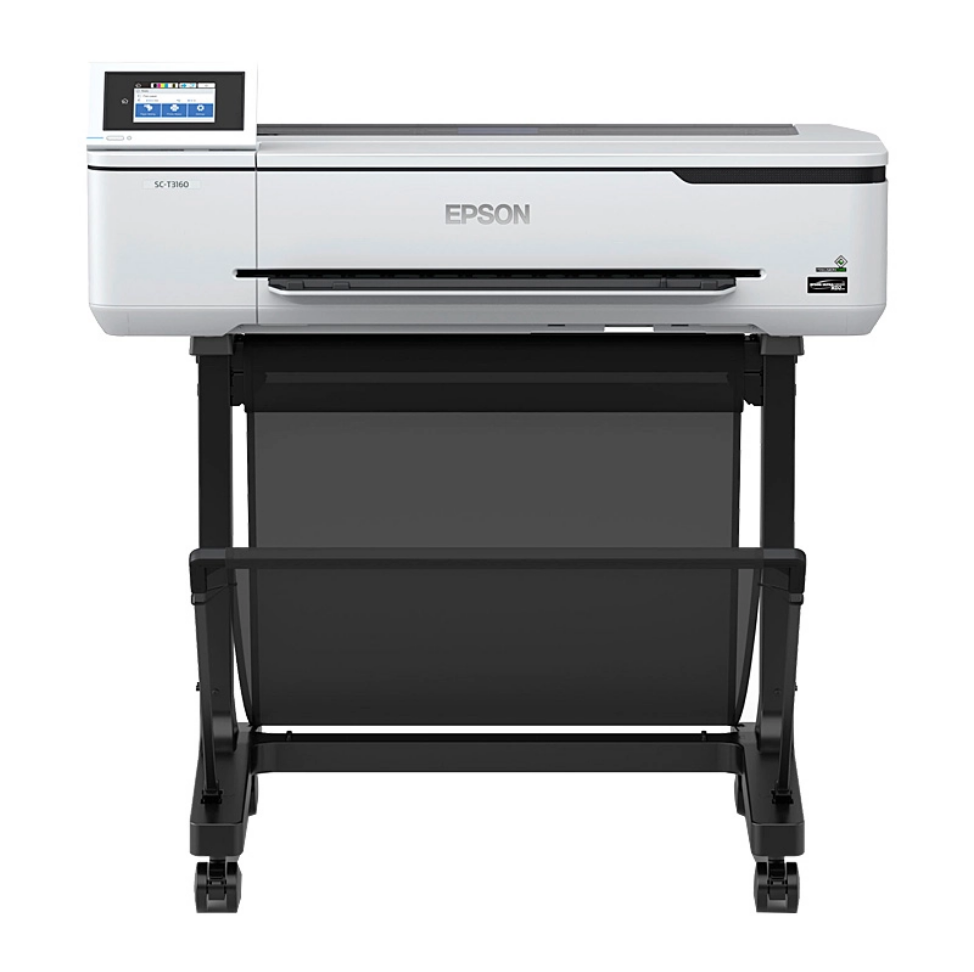

C12C933151	24" Printer Stand for T3160N/M
C12C933211	Additional Roll Feed Spindle for T3160 (24")
