EPSON SureColor P5360 17" Production Photo, Fine Art & Graphics Printer
EPSON SureColor P5360 17" Production Photo, Fine Art & Graphics Printer
Regular price
$3,669.00
Regular price
Sale price
$3,669.00
Unit price
per
Couldn't load pickup availability

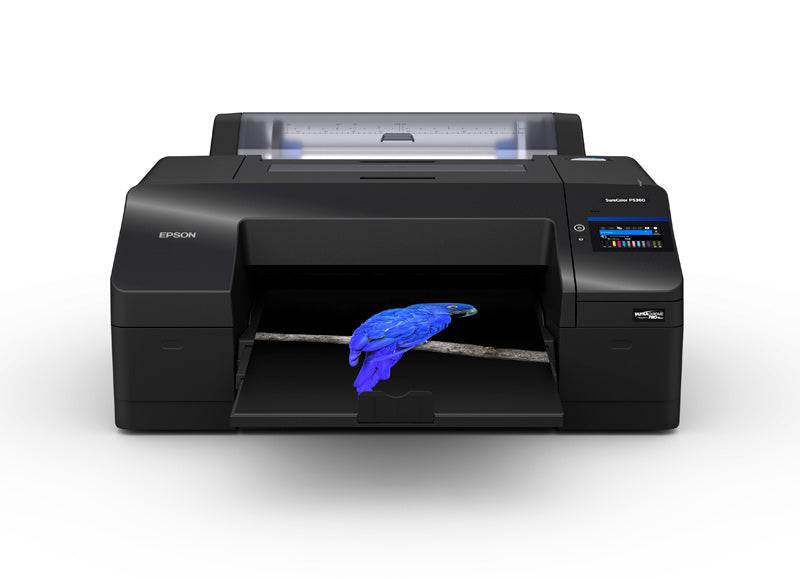

The EPSON SureColor P5360 stands out as a 17″ (432 mm) Large Format Printer tailored for premium photo printing and fine art reproduction. It offers excellent versatility, accommodating a wide array of standard and specialized media in both roll and sheet formats. Equipped with Epson’s innovative Micro Piezo printhead featuring Variable Sized Droplet Technology (VSDT), this printer excels in producing high-resolution images with remarkable detail and smooth tonal gradation.
| SIZE | |
|---|---|
| Max Print Width | 17 inch (432mm) |
| Max Sheet Size | A2+ |
| PRINT TECHNOLOGY | |
|---|---|
| Print Head | Epson Micro Piezo™ |
| Print Modes | Uni & Bi-directional |
| Features | Variable Sized Droplet Technology (VSDT) Advanced Epson LUT Enhanced Colour Density and Gamut Enhanced Print Durability Black Enhance Overcoat |
| Nozzle Configuration | 180 per colour |
| Active Channels | 10 (Dedicated Pk / Mk ink lines) |
| Max Resolution | 5760 x 1440 optimised dpi |
| Min Droplet Size | 1.5 pl |

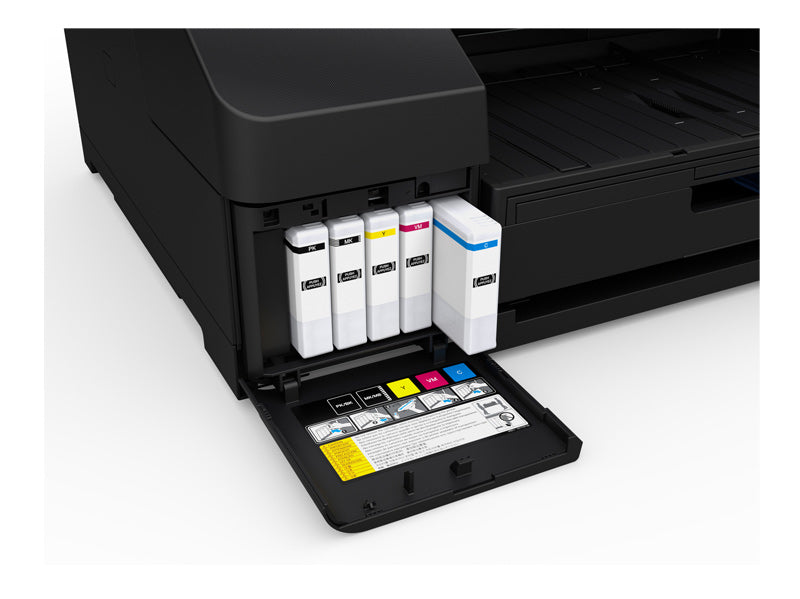

| INK SYSTEM | |
|---|---|
| Family | UltraChrome® Pro10 |
| Type | Aqueous all-pigment |
| Colours | 10
|
| Cartridge Size | 200 ml |
| MEDIA SUPPORT | |
|---|---|
| Format | Cut Sheet & Roll |
| Size | 8" x 10" (203 x 254 mm) - A2+ (432 x 610 mm) sheets 203 - 432 mm wide x 150 mm diameter 3" core / 103 mm diameter 2" core rolls |
| Thickness | 0.08 - 1.5 mm sheets 0.08 - 0.5 mm rolls |
| Min Margins (Normal Printing) | Sheets – 3 mm top, 0 mm left and right, 3 - 14 mm bottom Roll – 3 mm top and bottom, 0 mm left and right |
| Borderless Printing (Supported on nominated widths only) | Roll media: 8" (203.2 mm)1, 10" (254 mm), 11" (279.4 mm)1, 14" (355.6 mm), 16" (406.4 mm), 420 mm1, 17" (431.8 mm), A4/A3/A3+/A2, 300 mm, Cut sheets / Poster board: 10" (254 mm), 14" (355.6 mm), 16" (406.4 mm), 17" (431.8 mm), A4/A3/A3+, 300 mm |
| Max Print Length | 18 m |

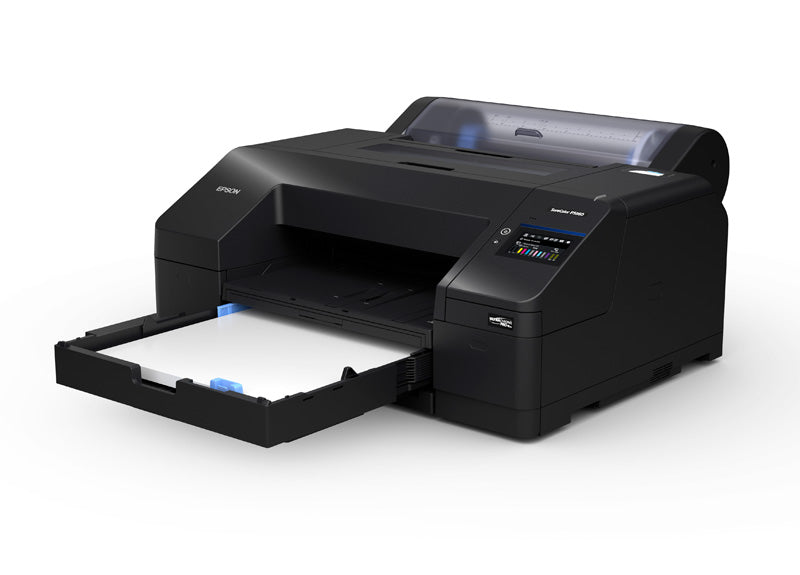

| Loading | Front and rear manual, top tray and front cassette (up to 250 plain and 100 photo) sheets Top roll (spindle style with dual tension settings) |
| Roll Handling | Heavy-duty rotary auto-cutter (under 5s per page) Media Barcode System for roll management |
| Output | Front with extendable tray |
| Double Sided Printing | Supported via manual loading however please refer to the user guide and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
| OPERATION | |
|---|---|

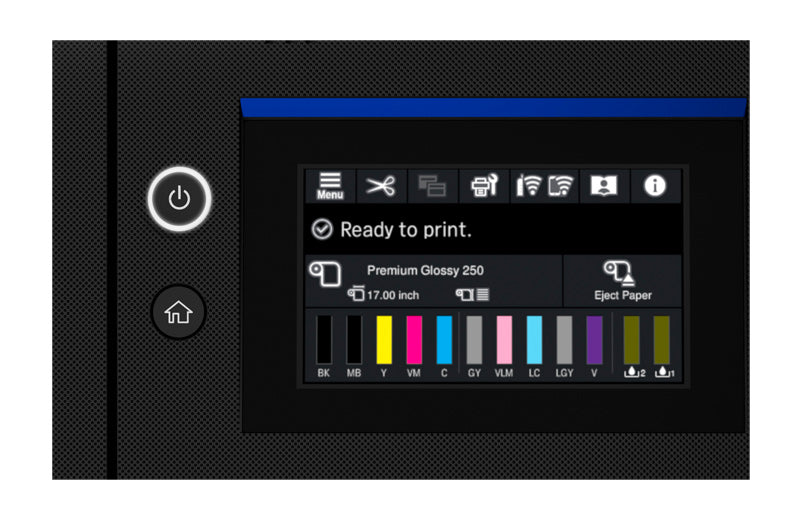

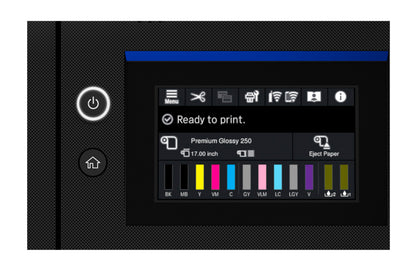

| Control Panel | 4.3” Touchscreen Colour LCD |
| Interface | High Speed USB 3.0 Ethernet 10Base-T / 100Base-TX, Wi-Fi, Wi-Fi Direct |
| (Windows) | Printer Driver, EpsonNet Print, EpsonNet Setup Manager, Epson Print Layout, Epson Edge Dashboard, Epson ColorBase3, Epson Media Installer, Epson Device Admin, Device Status System (DSS), Epson SureLab OrderController, Software and Firmware Updater |
| (Mac) | Printer Driver, Firmware Updater, EpsonNet Config SE, Epson Manual Launcher, Epson Print Layout, Epson Edge Dashboard, Epson Media Installer, Epson ColorBase3iOS |
| OS Compatibility | Mac OS X 10.9.5 or later Windows 11, 10, 8/8.1, 7 |
| 3rd Party S/W Compatibility | Compatible with a wide range of design, production, workflow management, and RIP software |
| Memory | 1 GB |
| Language | ESC/P Raster |
| ARM 64 Processor Compatibility | IMPORTANT NOTICE: A number of printer drivers have been found to have compatibility issues with Windows PCs that feature an ARM 64 processor. Epson is currently reviewing our current and recent model ranges with a view to issuing updates. Unfortunately, although we will roll these out as quickly as we can the process is not expected to be completed until early 2026. In the interim we do not recommend operation with this type of equipment. |
| PERFORMANCE | |
|---|---|
| Quality | 1440 x 720 dpi 4.50 minutes |
| High Quality | 1440 x 1440 dpi 6.55 minutes |
| Max Quality | 5760 x 1440 dpi 13.50 minutes |
| Max Quality with Black Enhance Overcoat | 5760 x 1440 dpi 19.55 minutes |
| Max Quality with Black Enhance Overcoat and Carbon Black | 5760 x 1440 dpi 30.45 minutes |
| Premium Glossy Photo Paper 170gsm. The total throughput time for a particular image will depend on a number of factors including the PC, software application, workflow configuration, networking, file format / size, image content, paper type and print mode. | |
| ENVIRONMENT | |
|---|---|
| Operational Temp | 10° to 35° C (15-25° C recommended) |
| Operational Humidity | 20 to 80% with no condensation (40-60% recommended) |
| Power Supply | 100 – 240 V, 50 Hz – 60 Hz AC, 2 A |
| Power Consumption | 42 W Operating / Standby 17 W / 2.4 W Sleep |
| Operating Noise | 46 dB |
| Operational Space (W x D x H) |
1163 x 1349 x 586 mm recommended (Additional space will be required at rear when using the straight through paper path) |
| PHYSICAL | |
|---|---|
| Dimensions (W x D x H) | 863 x 766 x 405 mm (Sheet feed and output tray closed) |
| Weight | 53 kg (no ink) |
| WHAT'S IN THE BOX | |
|---|---|
| Printer, power cord, Set of 80 ml inks (20-50% of each loaded cart will be used to charge the machine during initialisation), 1 x Maintenance Tank, 1 x Borderless Maintenance Tank, 1 x Paper Cassette Cover, 1 x Roll-Feed Spindle, 1 x Borderless Printing Spacer, Installation / Safety Manual. | |
| Packaging (W x D x H) |
Printer: 1032 x 912 x 593 mm, 65 kg |
