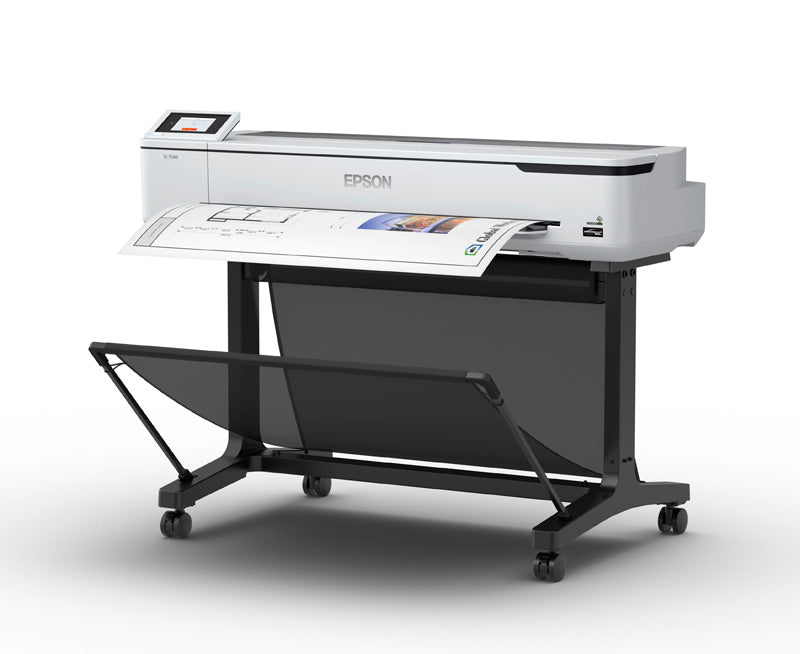

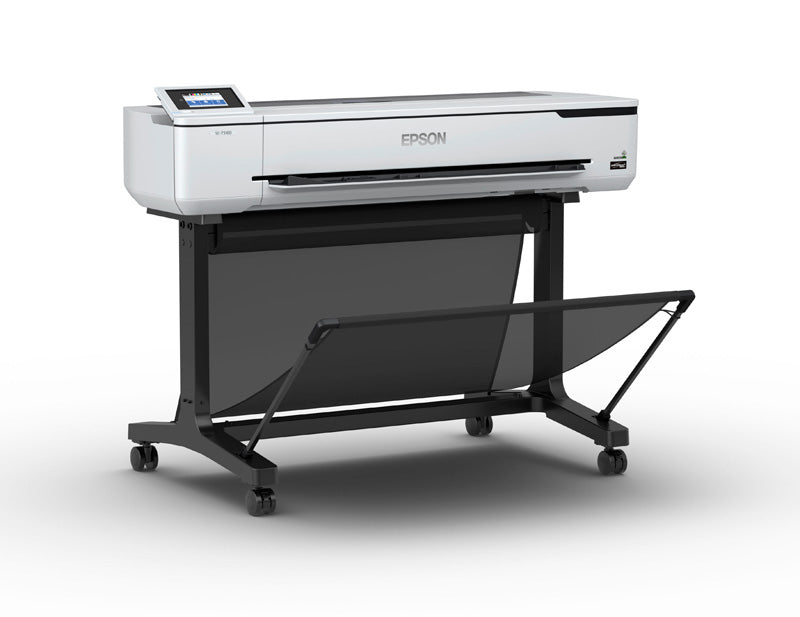

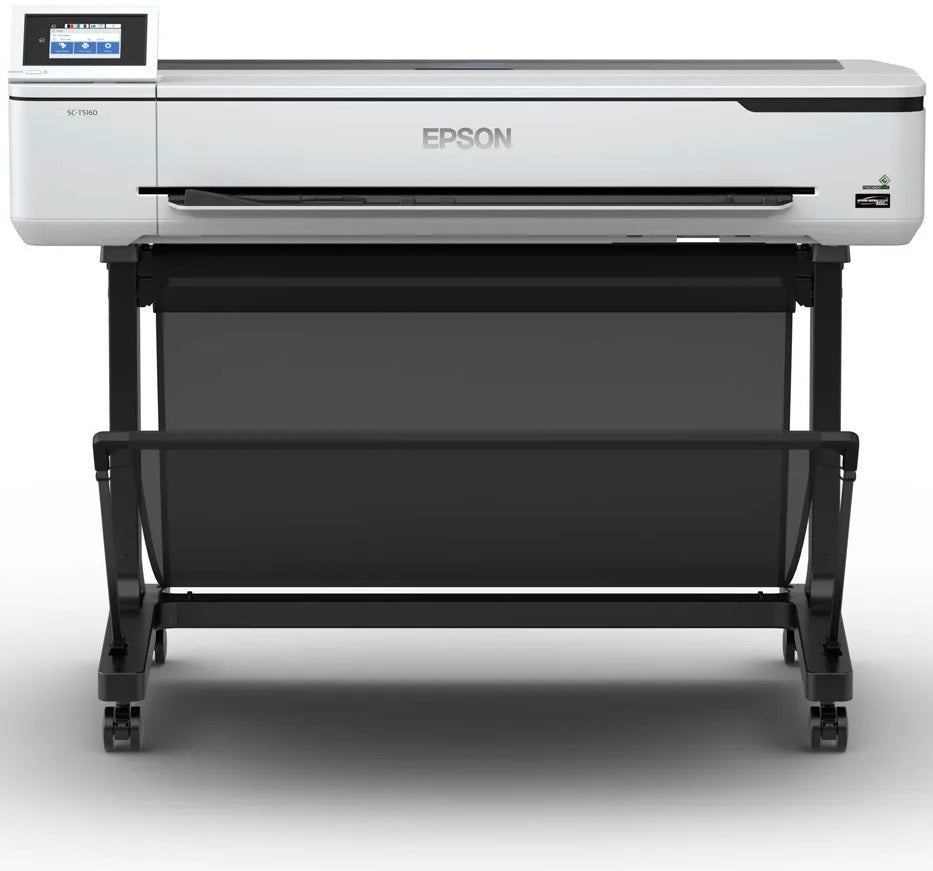

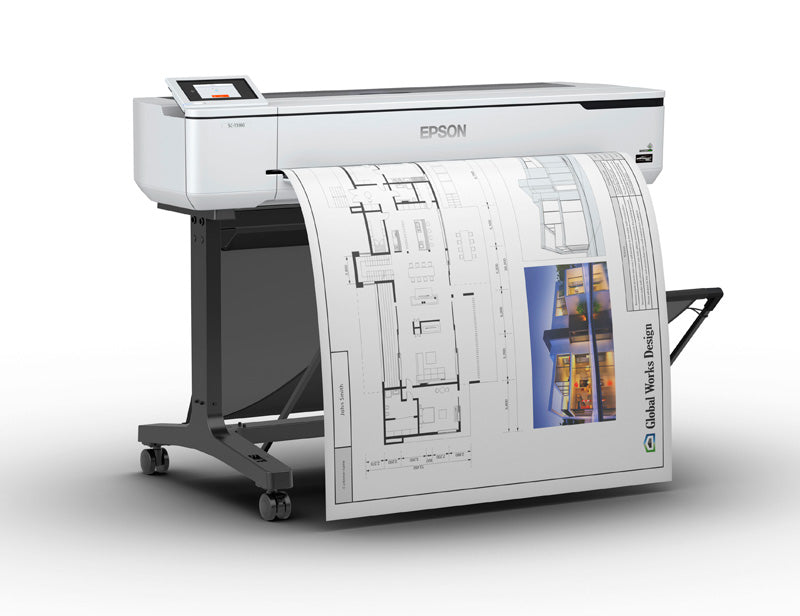

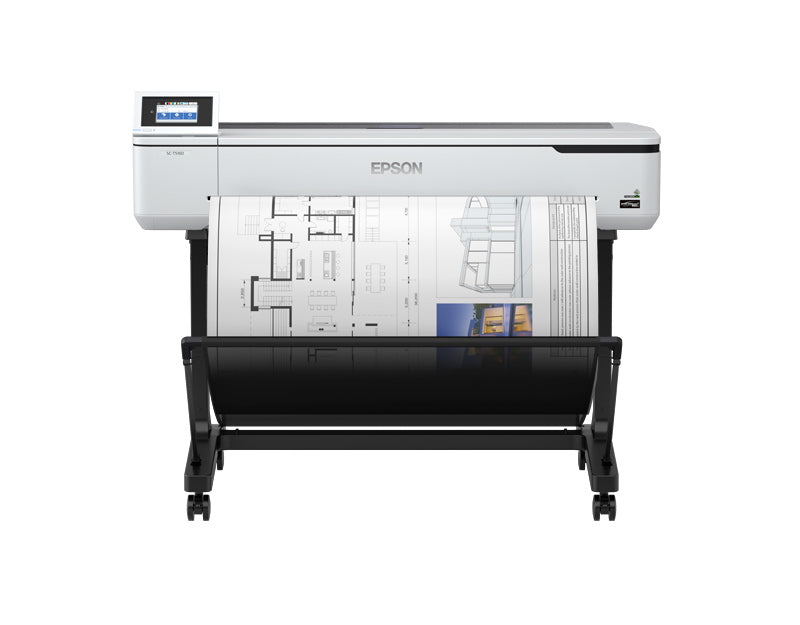

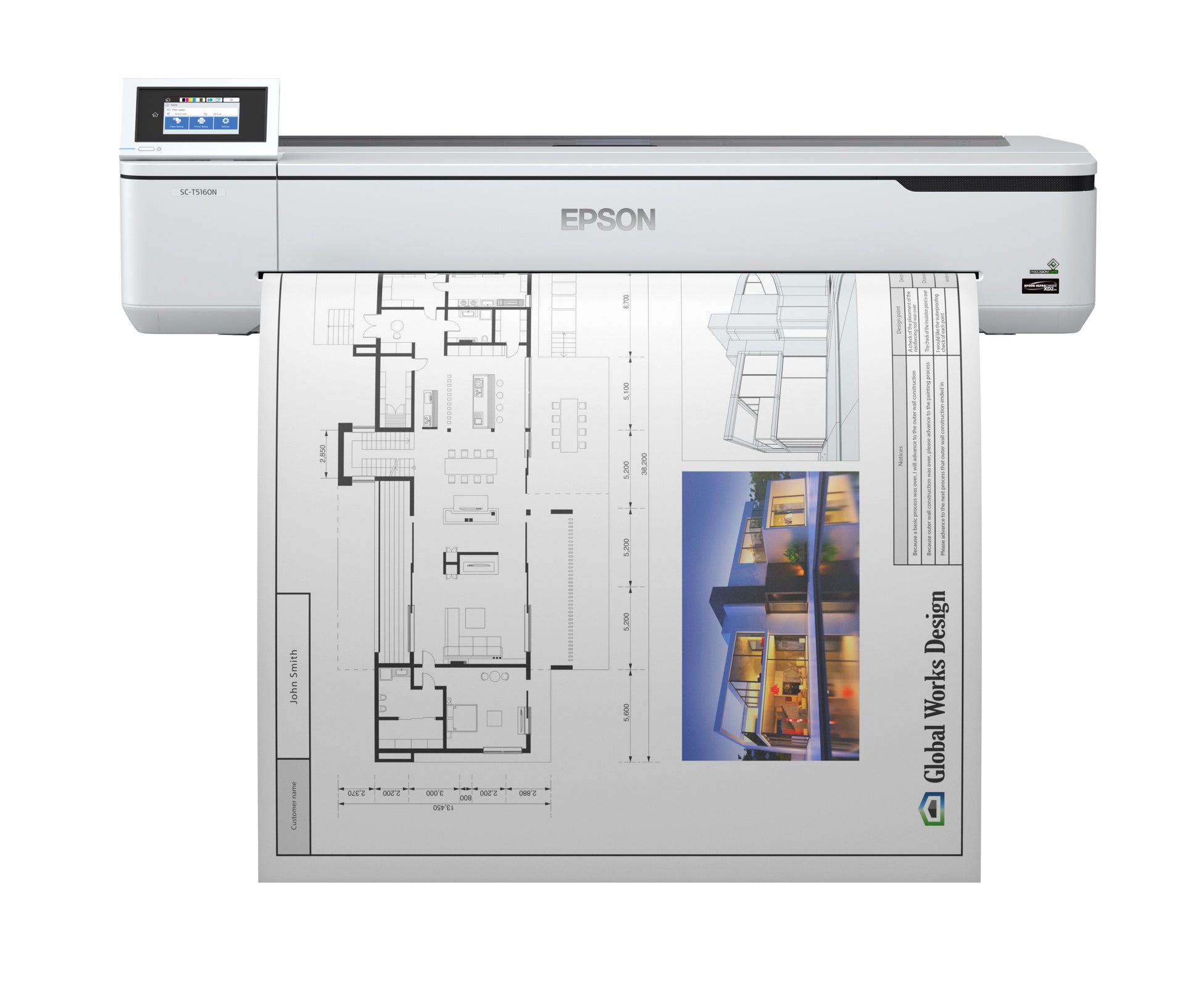

Epson SureColor T5160 36inch SF Large Format Printer
Epson SureColor T5160 36inch SF Large Format Printer
Regular price
$2,695.00
Regular price
Sale price
$2,695.00
Unit price
per
Couldn't load pickup availability
The SC-T5160 features Epson's latest PrecisionCore™ print head and aqueous UltraChrome® XD2 pigment ink. It will print an A1 image in as little as 31s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for small and medium sized businesses that want to produce wide format prints, the printer can be purchased in either a desktop or floor-standing configuration, has a very small footprint, and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications.
| TECHNICAL & CAD - PRINTER | |
|---|---|
| PRODUCT NAME | SureColor T5160 - 36" |
| SIZE | |
|---|---|
| Max Print Width | 36 inch wide (914mm) |
| PRINT TECHNOLOGY | |
|---|---|
| Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment |
| Print Modes | Uni & Bi-directional |
| Nozzle Configuration | 800 per colour |
| Maximum Resolution | 2400dpi x 1200dpi |
| Minimum Ink Droplet Size | 4.0pl |
| INK SYSTEM | |
|---|---|
| Family | Epson Ultrachrome® XD2 |
| Type | All-Pigment Aqueous |
| Colours | C+M+Y+K
|

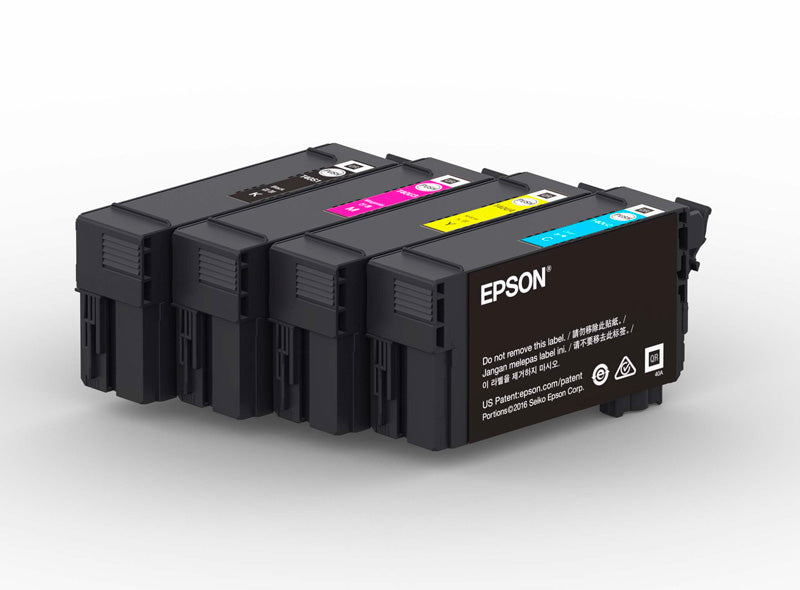

| Cartridges | CMY 26/50ml K 50/80ml |
| PERFORMANCE (per A1 Sheet) | |
|---|---|
| CAD A1 | 31sec |
 Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type. |
|
| MEDIA SUPPORT | |
|---|---|
| Roll Format | Single roll top loaded spindle, 2" core, 0.05-0.21mm thick, 329-914mm wide, 119mm max diameter, 5.9 kg max weight |

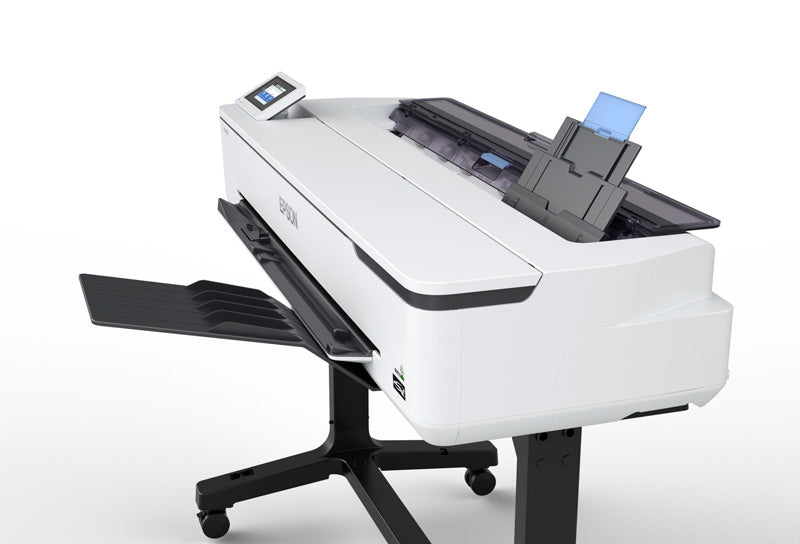

| Sheet Format | Top loaded A4-A0/B1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick |
| Auto Cutter | Inbuilt rotary type |
| Manual Double Sided Printing | Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
| Output | Single sheet hold feature Supplied with an A4/A3 output tray Floor-standing model and optional Printer Stand incorporates a media basket |
| OPERATION | |
|---|---|
| Control Panel | 4.3" Colour LCD touch screen |
| Control Code | ESC/P Raster, HP/GL/2 & HP RTL* 1 |
| Connectivity | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print |
| Compatibility | Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later |
| Memory | 1GB RAM |
| Scanner Support | USB interface with integrated control & auto enlargement Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes Supports A2, US-C (17x22"), B2, US-D (22x34"), A1, B1, US-E (34x44"), A0 & custom (89-610mm wide) output page sizes Supports Epson DS-530, DS-6500 & DS6000 scanner models |
| Physical (WxHxD) | Desktop: 1268 x 230 x 505 mm, 33kg (no consumables, media or options, no output tray, ASF closed) Floor Standing: 1268 x 913 x 696 mm, 46kg (closed basket, no consumables, media or options, no output tray, ASF closed) |
| ARM 64 Processor Compatibility | IMPORTANT NOTICE: A number of printer drivers have been found to have compatibility issues with Windows PCs that feature an ARM 64 processor. Epson is currently reviewing our current and recent model ranges with a view to issuing updates. Unfortunately, although we will roll these out as quickly as we can the process is not expected to be completed until early 2026. In the interim we do not recommend operation with this type of equipment. |
| ENVIRONMENT | |
|---|---|
| Operational Temp | 10° to 35° C |
| Operational Humidity | 20 to 80% (no condensation) |
| Power Supply | 100 - 240 V AC, 50/60 Hz |
| Power Consumption | 28W Operating, 8W Standby, 1.6W Sleep |
| Operating Noise | 49dB |
| Recommended Install Space (WxHxD) | Desktop: 1318 x 380 x 915mm Floor-standing: 1318 x 1063 x 1270mm |
| SHIPPING INFO | |
|---|---|
| Packaging (WxDxH) | Desktop: 1,506 x 724 x 522mm, 45Kg Floor standing: 1,506 x 724 x 587mm, 58Kg |
| What’s in the Box | Printer, Power Cord, a set of 50ml ink carts, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD. An additional Stand is included with floor-standing configurations. |
| Delivery & Install | Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations. |
| Service & Support | Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty. terms and travelling charges may apply for equipment located outside major metro areas. |
| OPTIONAL ACCESSORIES | |
|---|---|
| C12C933091 | 36" Printer Stand (included with all configurations other than the SCT5160N1YR) |
| C12C933131 | Additional Roll Feed Spindle for T5160 & T5160M (36") |
