Printer Master

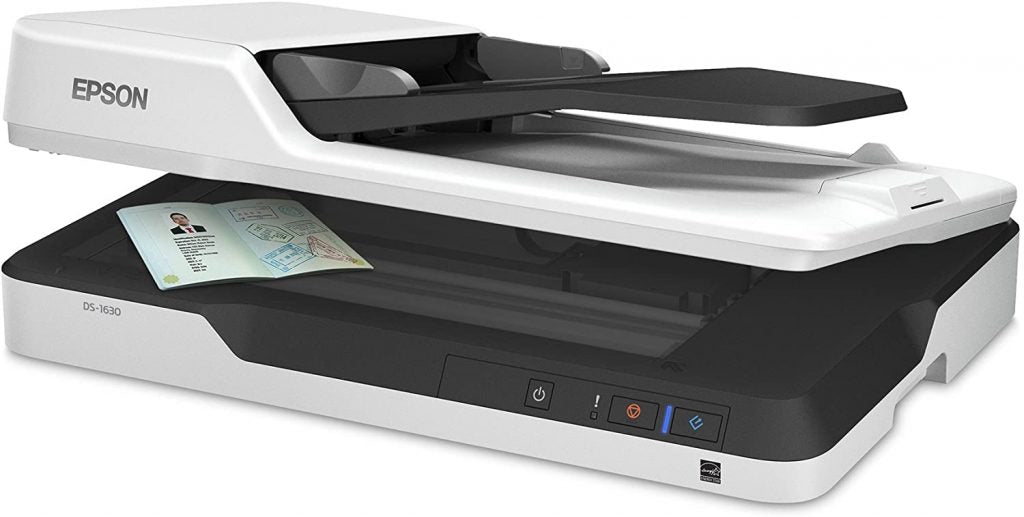

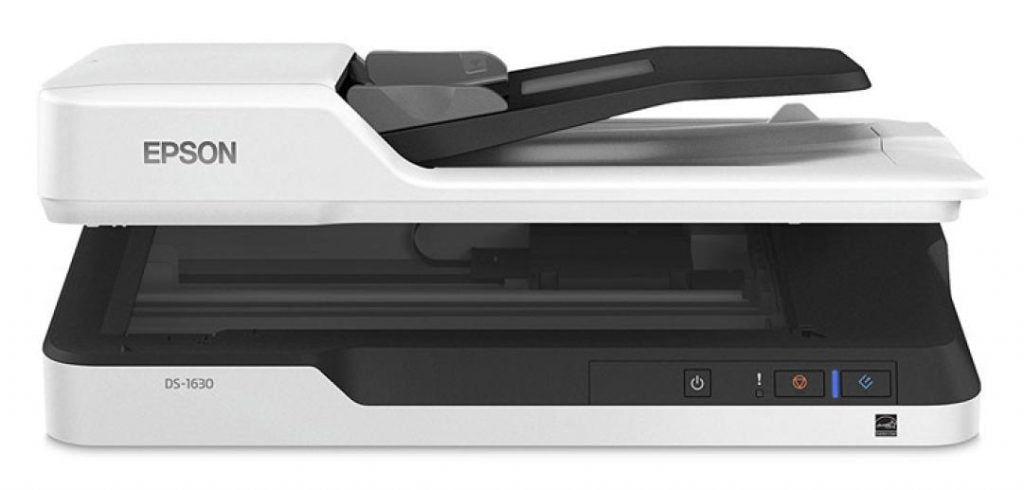

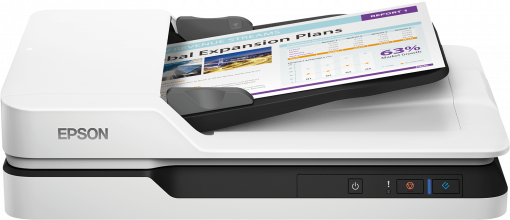

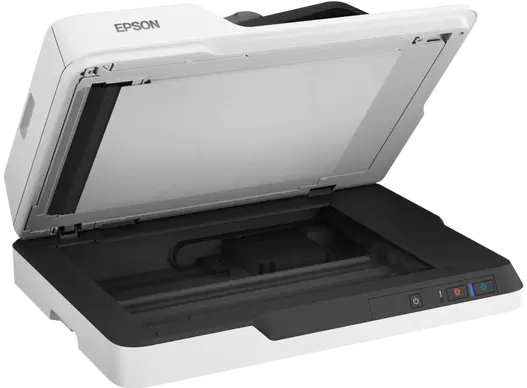

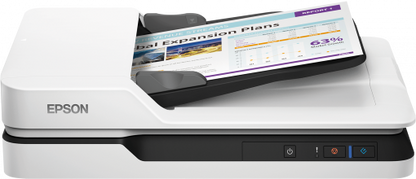

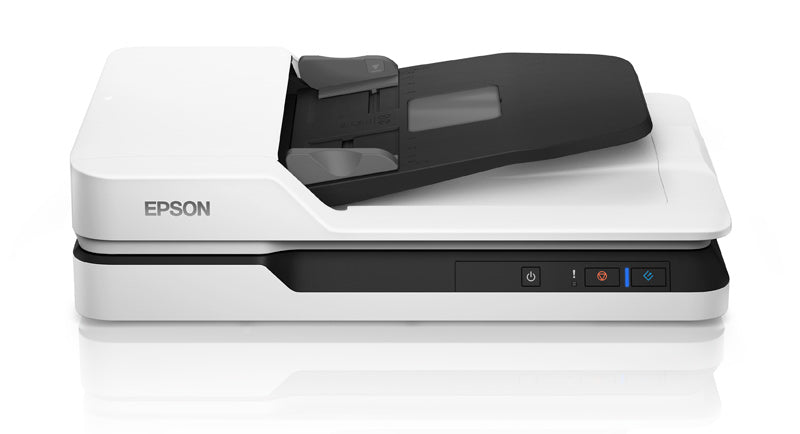

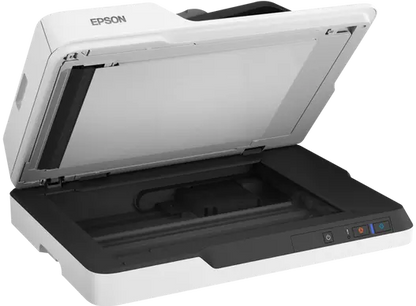

Epson DS-1630 Flatbed Color Document Scanner
Epson DS-1630 Flatbed Color Document Scanner
Regular price
$569.00
Regular price
Sale price
$569.00
Unit price
/
per
Couldn't load pickup availability
The Epson WorkForce DS-1630 is an A4 business scanner that delivers high quality document scanning. Ideal for small to medium businesses as well as SOHO users who require fast document scanning speeds at an affordable price.
| SCANNER | |
|---|---|
| SCANNER TYPE | Sheetfed & Flatbed A4 colour image scanner |
| OPTICAL RESOLUTION | Flatbed: 1,200 x 1,200 dpi ADF: 600 x 600 dpi |
| SENSOR TYPE | Contact Image Sensor (CIS) |
| LIGHT SOURCE | 3 Colour RGB LED |
| MAXIMUM EFFECTIVE SCAN AREA | |
|---|---|
| SIZE | Flatbed: 216 x 297mm (8.5 x 11.7 inches) ADF: 216 x 356mm (8.5 x 14.0 inches) |
| GRAYSCALE | 8-bit external 8-bit internal |
| COLOUR | 24-bit external 30-bit internal |
| INTERFACE | USB 3.0++ |
| ++The functionality of the USB port(s) must be ensured by the vendor of the Host. | |
| USAGE | |
|---|---|
| DAILY DUTY CYCLE | 1,500 sheets |

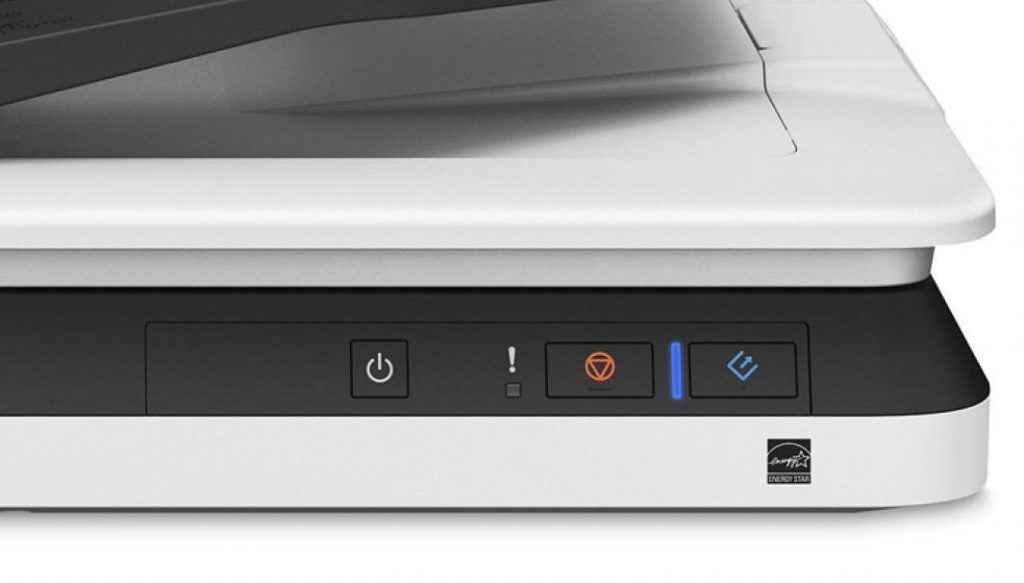

| BUTTONS | Power, Scan, Stop |
| SCANNING SPEED* | |
|---|---|
| MONOCHROME - A4 300dpi (PDF) | 25ppm |
| COLOUR - A4 300dpi (PDF) | 10ipm |
| *Scanning speed test results vary according to system configuration, dpi setting, and scan mode setting. | |
| ADF | |
|---|---|
| TYPE | Sheet through, Simplex scanning |
| PAPER SUPPLY | Paper Supply: Face up load Paper Out: Face down eject |
| DOCUMENT SIZE | A4, Letter, Legal, B5, A5, A6 Max. size: 216 x 356 mm Min. size: 105 x 148.5 mm |
| PAPER SETTING CAPACITY | 50 pages (75g/m2) |
| PAPER WEIGHT | 50-120g/m2 |
| FUNCTIONS | |
|---|---|
| EASY DOCUMENT SCANNING | Double sided scanning of PDF Searchable PDF (Windows only) Scan to Mutli PDF Encrypted pdf Compression pdf Stand-Alone Application and Scan to File Feature Multi Purpose User Interface Auto Skew Correction Multi Marquee |
| DOCUMENT IMAGE ADJUSTMENT | Text enhancement Colour enhancement Dropout colour Unsharp Mask De-Screening with Document Type Optimiser Tone Curve Adjustment with Histogram |
| SUPPORTED PLATFORMS | |
|---|---|
| Windows® 11, Windows® 10, Windows® 8/8.1, Windows® 7 Mac OS® X 10.6.8 − 10.11.x Software requires Internet connection for download and installation. |
| ENVIRONMENTAL CONDITIONS | |
|---|---|
| TEMPERATURE | 10°C to 35°C (Operating) -25°C to 60°C (Storage) |
| HUMIDITY | 20% to 80% without condensation (Operating) 20% to 85% without condensation (Storage) |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| RATED VOLTAGE | AC100-240V 50-60Hz |
| POWER CONSUMPTION | Approx. 11W (Operating) Approx. 0.8W (Sleep Mode) Approx. 5.8W (Ready Mode) Approx. 1.5W (Power Off) |
| BUNDLED SOFTWARE* | |
|---|---|
| Epson Scan2 Online User Guide ISIS driver for Windows** |
| DIMENSIONS | |
|---|---|
| WIDTH DEPTH HEIGHT WEIGHT |
450mm 318mm 121mm Approx. 6kg |
