Printer Master

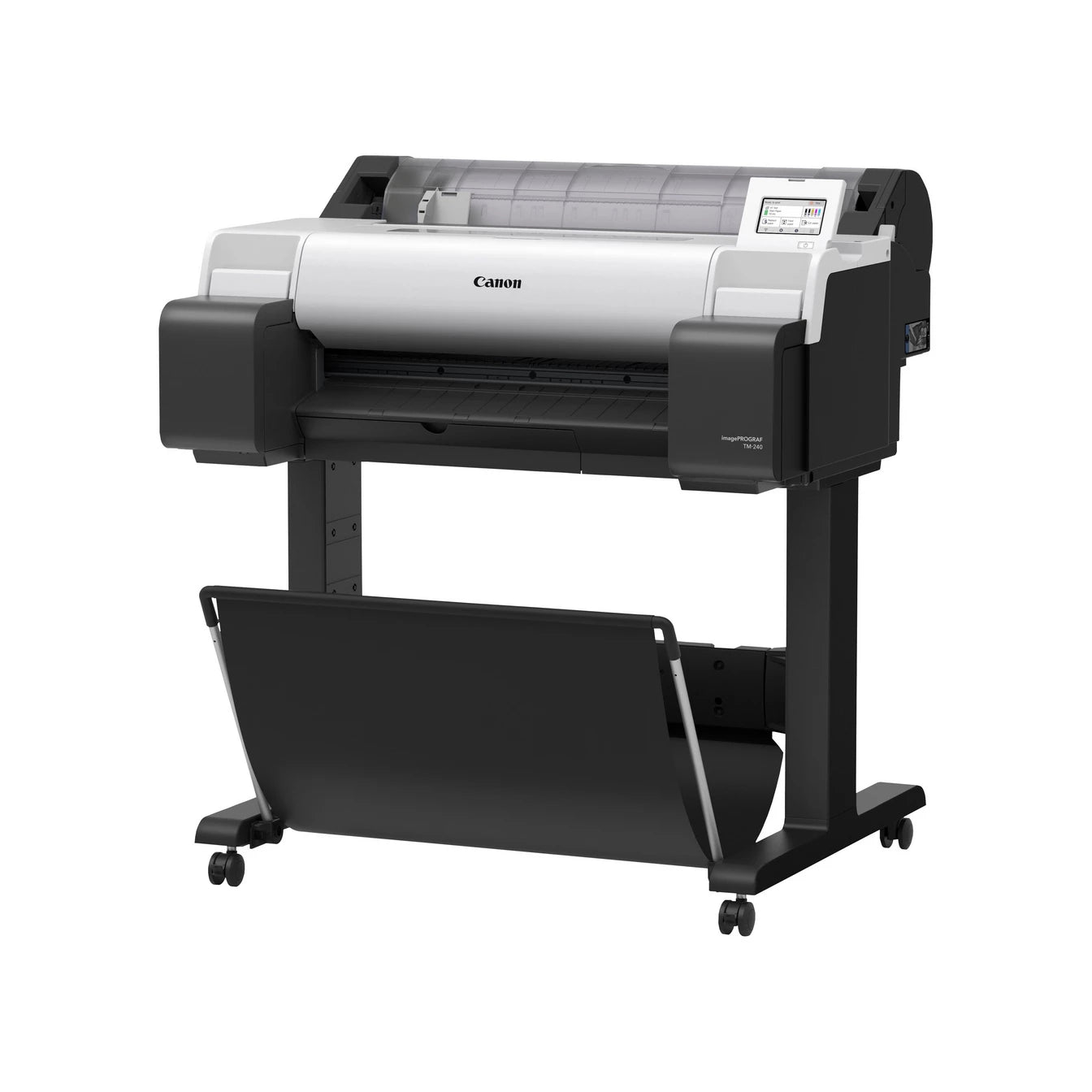

Canon imagePROGRAF iPF TM-240 LM24
Canon imagePROGRAF iPF TM-240 LM24
Regular price
$2,198.90
Regular price
Sale price
$2,198.90
Unit price
/
per
Couldn't load pickup availability
24" CAD, GIS & Poster Large Format Printer
Versatile printer for both technical CAD drawing and in-house poster printing.
Experience fast performance with this eco-friendly 24-inch (61 cm) multifunction printer. Enjoy quiet operation, user-friendly functionality, and outstanding print quality for high-quality prints with crisp lines and vibrant red colors. These features make it the perfect choice for attractive CAD drawings. The integrated scanning functions, combined with dedicated software, significantly increase productivity. Benefit from fast printing and scanning for a seamless workflow.
Specifications
| Printer Technology | |
| Printer Type | 5 Colours 24" |
| Print Technology | Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head) |
| Print Resolution | 2,400 x 1,200 dpi |
| Number of Nozzles | |
| Total | 15360 nozzles |
| MBK | 5120 nozzles |
| BK, C, M, Y | 2560 nozzles each |
| Line Accuracy | ±0.1% or less User adjustments necessary. Printing environment and media must match those used for the adjustments. |
| Nozzle Pitch | 1,200 dpi x 2 lines |
| Ink Droplet Size | minimum 5pl per colour |
| Ink Capacity | |
| Bundled Starter Ink | 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y) |
| Sales Ink | 55ml (MBK, BK, C, M, Y) |

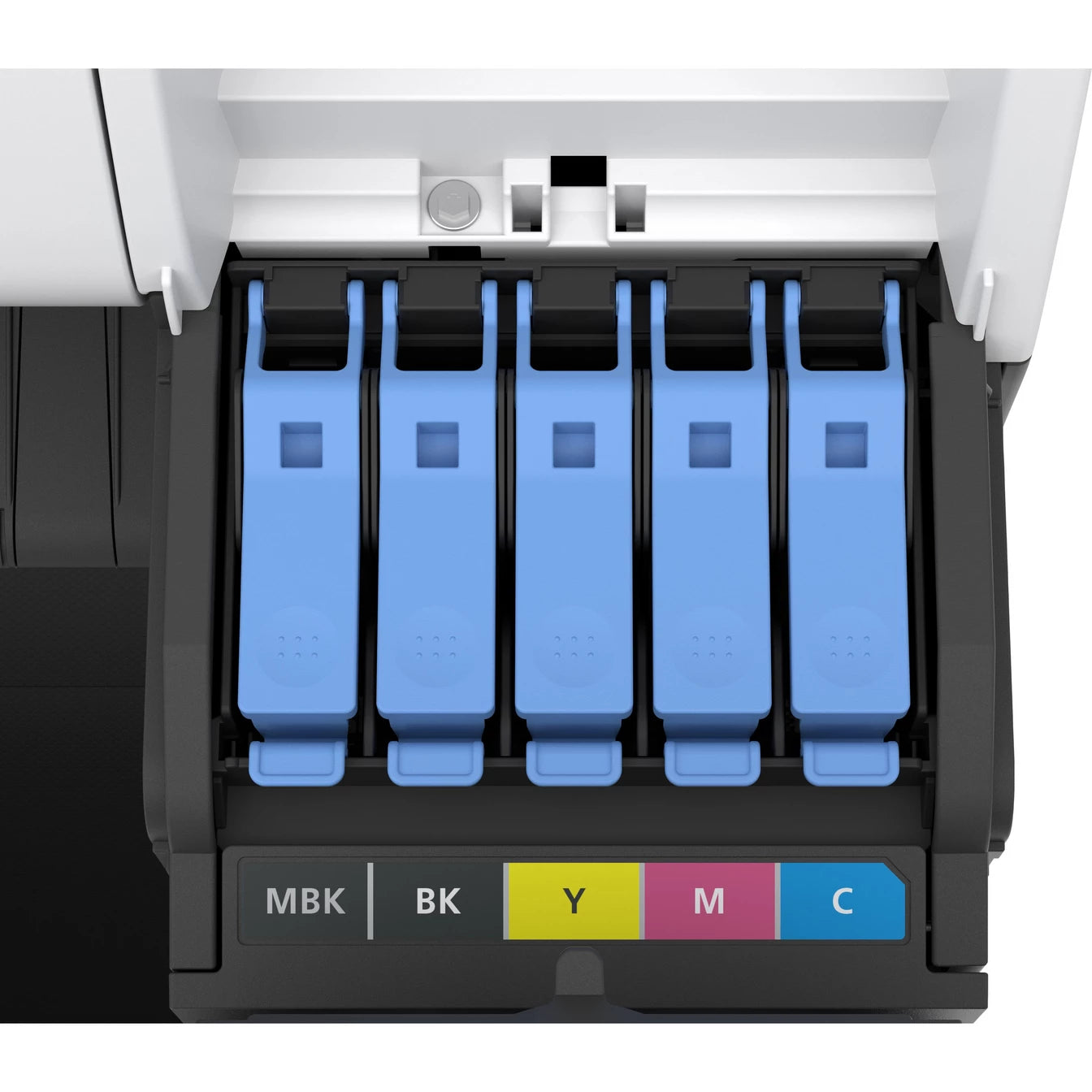

| Ink Type | Pigment inks: 5 colours MBK/BK/C/M/Y |
| OS Compatibility | |
| 32 Bit | Windows7, Windows 8.1, Windows 10 |
| 64 Bit | Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 |
| Apple Macintosh | macOS 10.15.7～macOS 13 |
| Other Supported Job Submission Protocols | Apple AirPrint |
| Printer Languages | HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 |
| Standard Interfaces | |
| USB A Port | N/A |
| USB B Port | Hi-Speed USB |
| Ethernet | IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T) |
| Wireless LAN | IEEE802.11n/IEEE802.11g/IEEE802.11b |
| Memory | |
| Standard Memory | 2GB |
| Expansion slot: No | |
| Hard Drive | N/A |
| Print Speed | |
| CAD Drawing Plain Paper (A1) | 0:23 (Fast Economy Mode) |
| 0:25 (Fast) | |
| 0:51 (Standard) | |
| Poster Plain Paper (A1) | 0:25 (Fast Economy Mode) |
| 0:25 (Fast) | |
| 0:49 (Standard) | |
| Heavy Coated Paper (A1) | 0:56 (Fast) |
| 1:45 (Standard) | |
| Media Handling | |

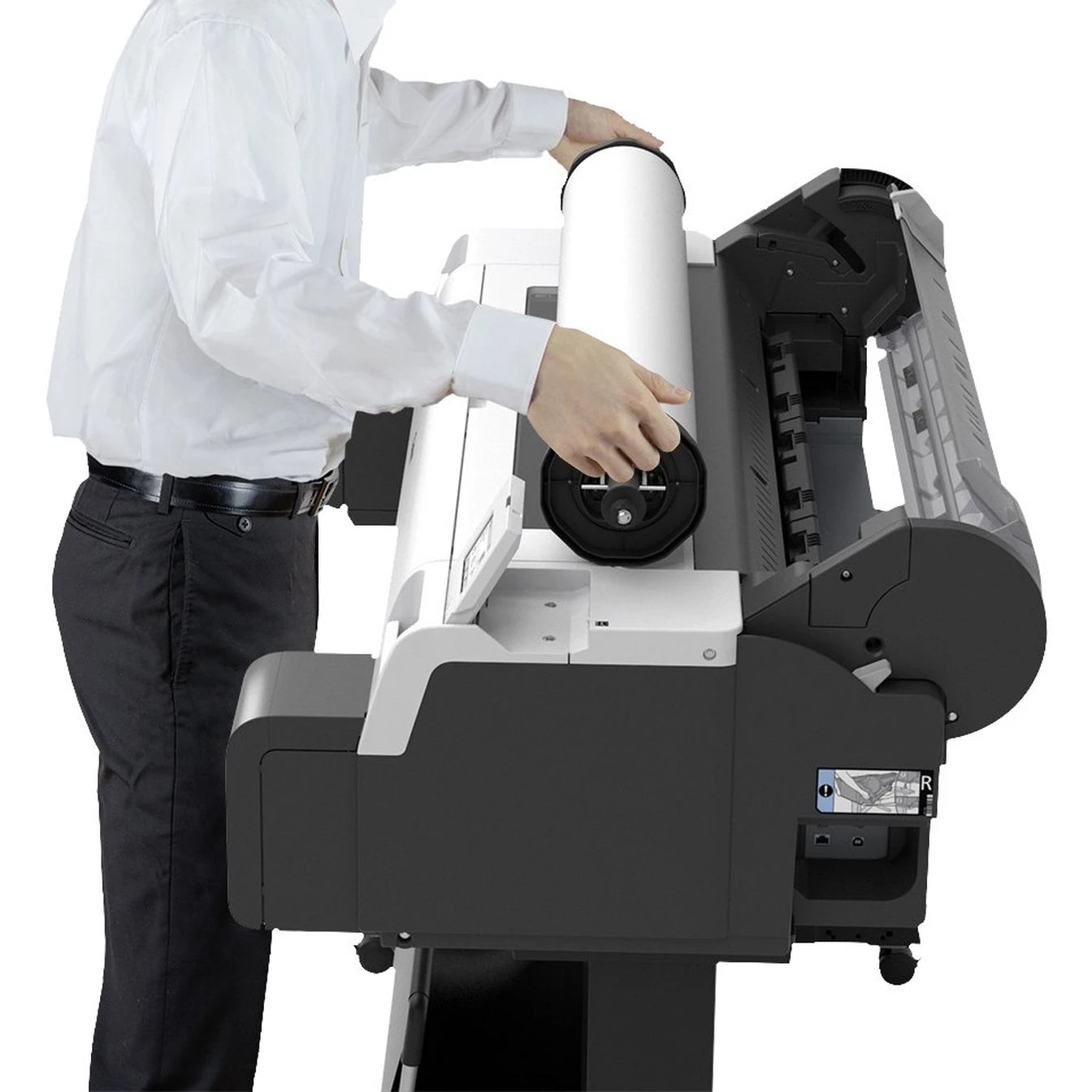

| Media Feed and Output | Roll Paper: One Roll, Upper-loading, Front Output |
| Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever) | |
| Media Width | Roll paper: 203.2 - 610mm |
| Cut sheet: 210 - 610mm | |
| Media Thickness | Roll/Cut: 0.07mm - 0.8mm |
| Minimum Printable Length | Roll paper: 203.2mm |
| Cut sheet: 279.4mm | |
| Maximum Printable Length | Roll paper: 18m (varies according to the OS and application) |
| Cut sheet: 1.6m | |
| Maximum Media Roll Diameter | 150mm |
| Media Core Size | Internal diameter of roll core: 2"/3" (Optional) |
| Margins Recommended Area | Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm |
| Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm | |
| Cut sheet (Others): Top: 20mm, Bottom: 20mm, Side: 3mm | |
| Margins Printable Area | Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm |
| Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm | |
| Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm | |
| Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm | |
| Media Feed Capacity | Roll Paper: One roll |
| Cut Sheet: 1 sheet | |
| Borderless Printing Width (Roll Only) | [Recommended]515mm(JIS B2), 594mm (ISO A1), 10", 14", 17", 24" [Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 300mm, 500mm, 600mm Other than above, free size borderless printing is supported on only roll paper by user definition |
| Maximum Number of Delivered Prints | Standard position - 1 sheet |
| Power and Operating Requirements | |
| Power Supply | AC 100-240V (50-60Hz) |
| Power Consumption | Operation: 59W or less |
| Sleep mode: 2.2W or less | |
| Default setting for the time to enter the Sleep mode: Approx. 5 minutes | |
| Power off: 0.1W or less | |
| Operating Environment | Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation) |
| Acoustic Noise (Power/Pressure) | Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard) |
| Standby: 35 dB(A) or less | |
| Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard) |
|
| Regulations | CE mark, UKCA mark |
| Environment Certificates | CB certfication, EPEAT GOLD1 |
| Dimensions and Weight | |
| Physical Dimensions and Weight | W x D x H Main unit + Stand + Basket (SD-24) 978 x 868 x 1060 mm (Operation panel is not tilted up/Basket Opened) 978 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed) 50.9 kg (including Roll Holder Set, excluding ink and print head) |
| Packaged Dimensions and Weight | Printer (Main unit with pallet): 1152 x 912 x 679 mm, 71kg Stand + Basket (SD-24): 1058 x 826 x 270 mm, 20kg |
| What's Included | |
| What's in the Box? | Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Notice for PosterArtist WEB |
| Software Included | Software available as Download from Web |
| Options | |
| Optional Items | Stand Basket (Simple Basket): SD-24 2"/3" Roll Holder: RH2-28 IC Card Reader Holder: RA-02 |
| Consumables | |
| User Replaceable Items | Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y: PFI-030(55ml) |
| Print Head: PF-06 | |
| Cutter Blade: CT-08 | |
| Maintenance Cartridge: MC-31 |
