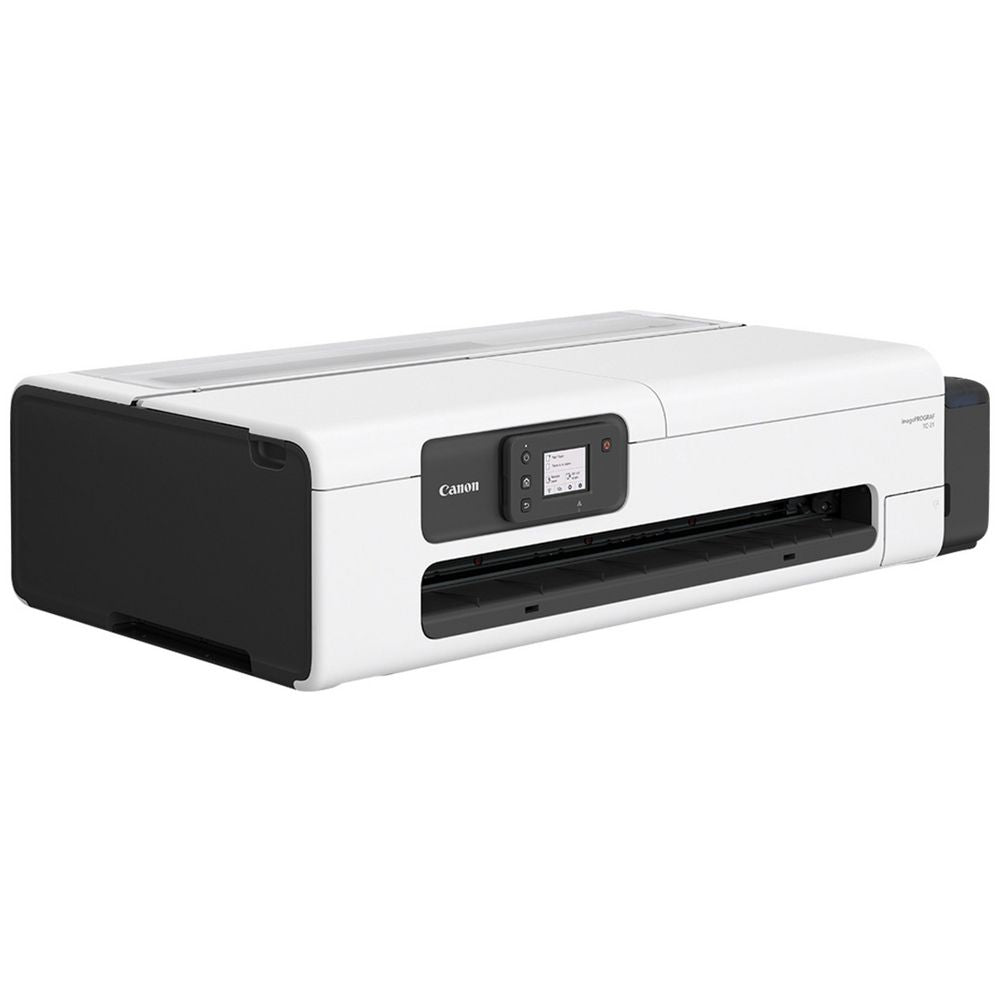

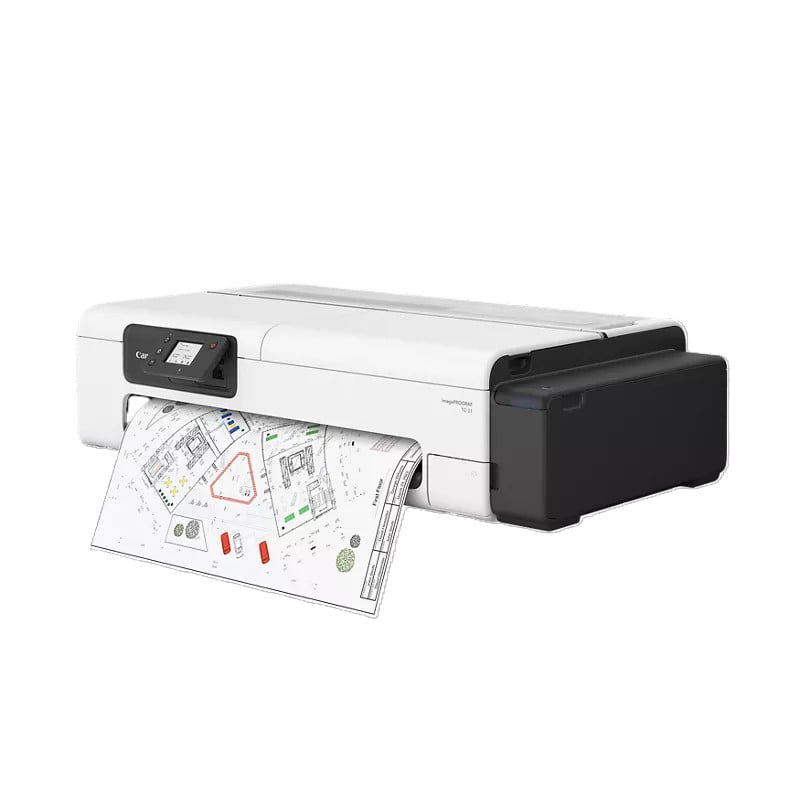

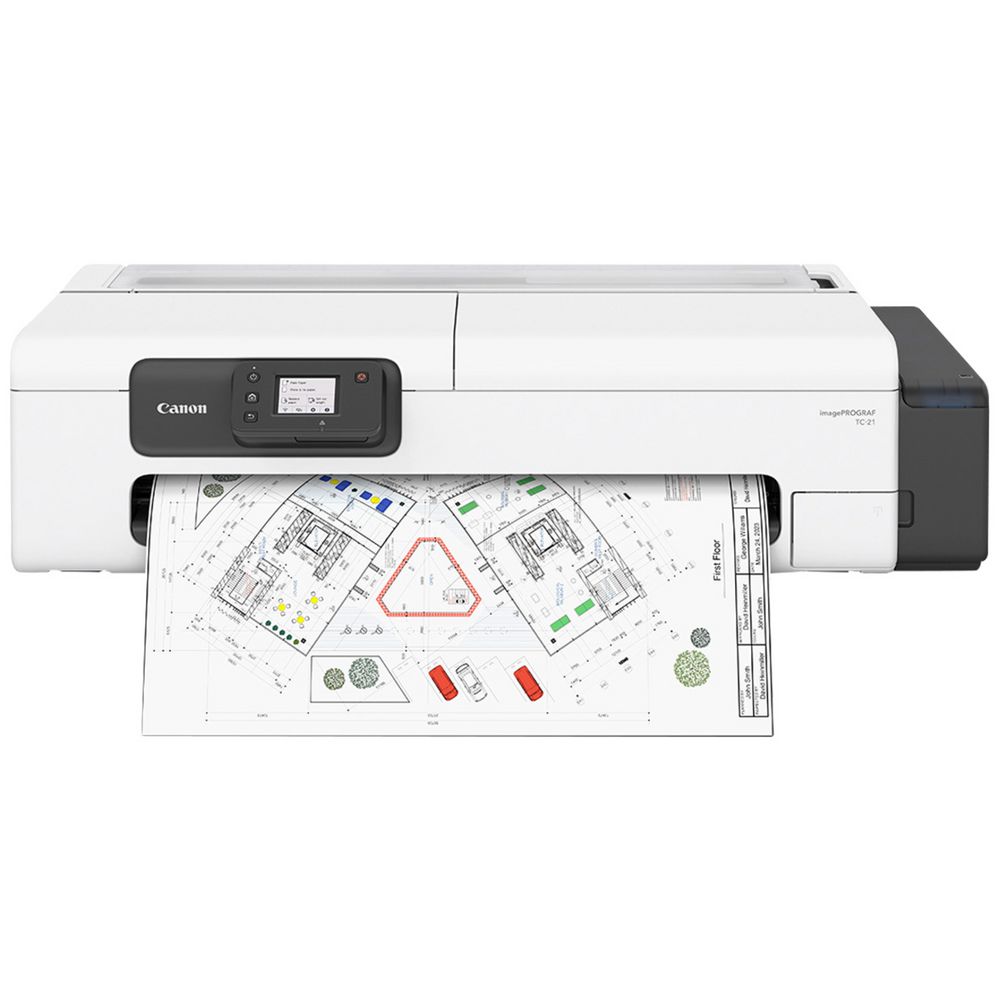

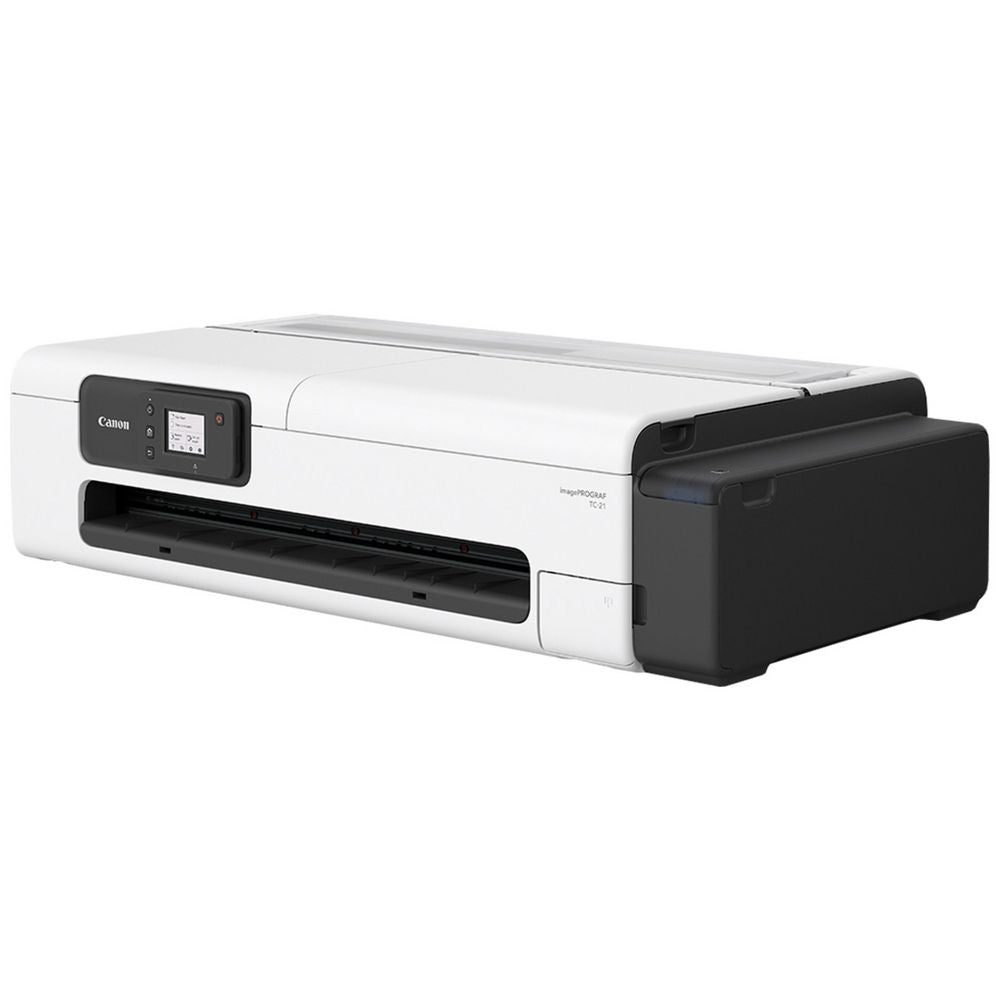

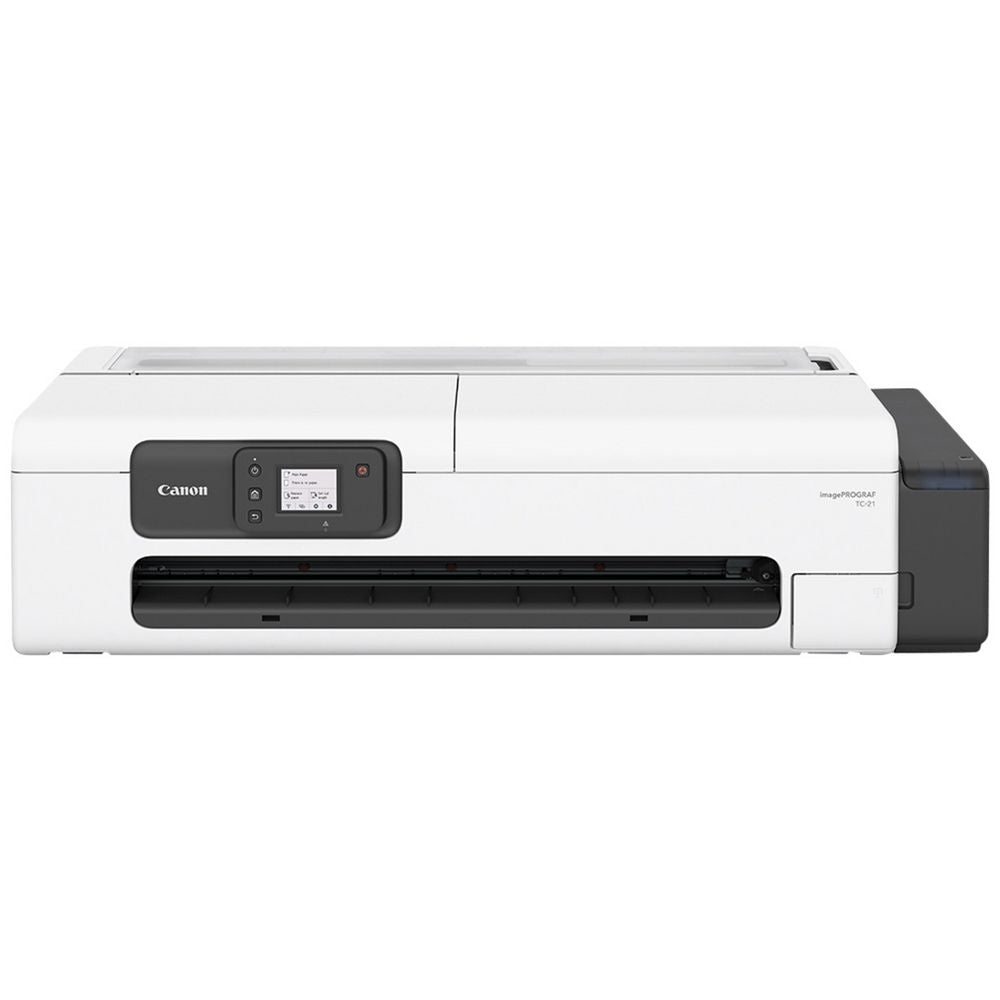

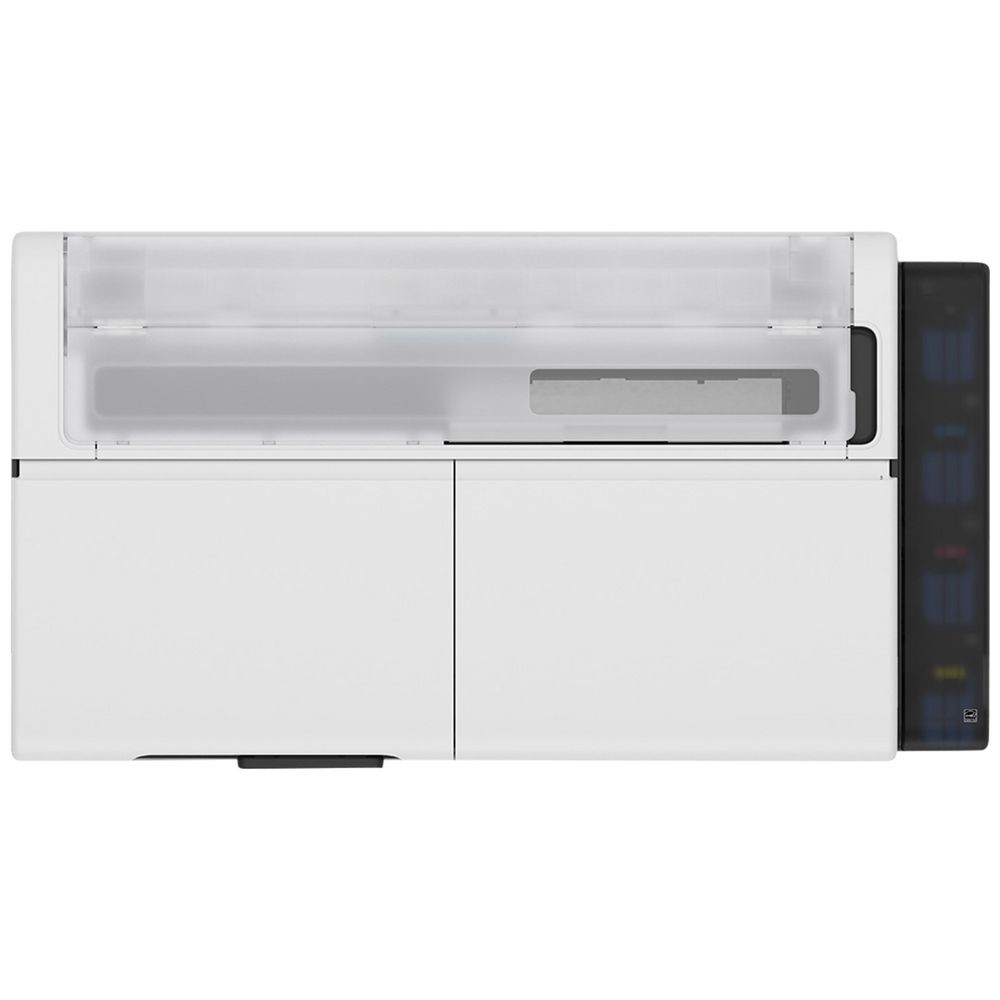

imagePROGRAF TC-21 is perfectly built for architectural drawings, retail posters, and educational materials. With a small footprint, it can be placed on a desk or shelf. It also helps to manage all tasks with simplicity through its workflow software.
Product Summary:

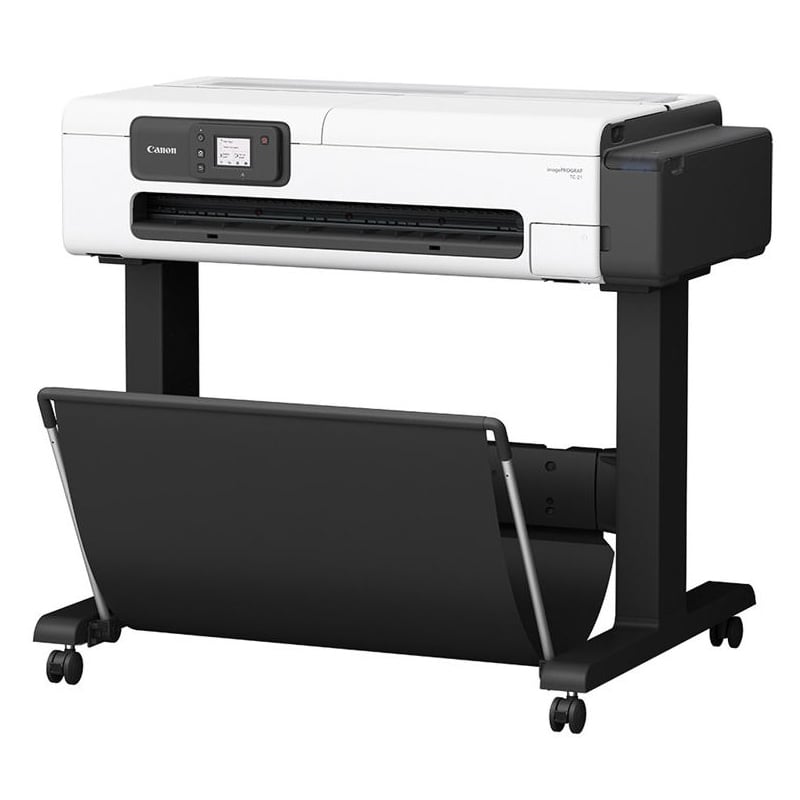

Large format printer with stand
Print up to 24" - 4-colour pigment ink

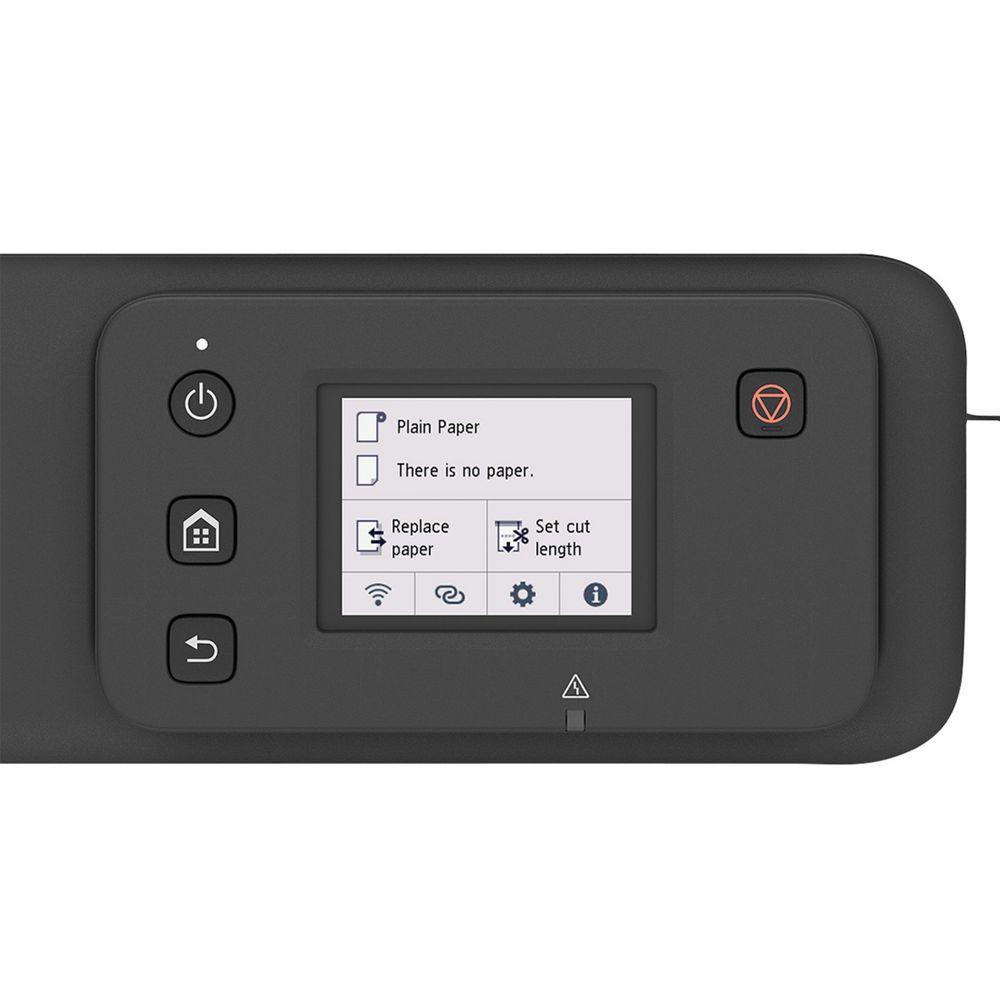

2.7" LCD touch screen
Suitable for CAD & poster, flyer printing
Easy access - all operations can be done from the front of the printer
Switch Printing Roll paper and Cut Sheet
Standard Auto Sheet Feeder allows continuous cut sheet print
Connectivity: Hi-Speed USB, Ethernet, Wireless LAN
Specification:
General
Model Number
TC-21
Paper Size
A1
Printing Output Type
Colour
Printing Technology
Ink-Jet
Product Dimensions
968x868x874mm
Product Weight
43 kg
USB Cable Included
no
Connectivity
Interface
USB, Ethernet, Wi-Fi
Compatibility
Operating System
Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2025-2008 R2, macOS v15-11.7.10
Printing Software Capabilities
Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT, Cloud service, PosterArtist Web
Media Handling
Media Handling
Roll Feed: One Roll, Top Loading, Front Output
Media Cutter
Automatic horizontal cutting (Rotary Cutter)
Media Thickness
0.08–0.28 mm
Media Width
Roll Paper: ISO: A3, A2, A2+, A1; JIS: B2, B3; ARCH: 18”, 24”; Others: 17”; Cut Sheet: ISO: A6, A5, A4, A3, B4; DIN: C4; JIS: B6, B5, B4; ANSI: Ledger (11" x 17"), Letter (8.5" x 11"), Legal (8.5" x 14"), Foolscap, Executive; ARCH: 9" x 12"(ARCH A); Photo: 10" x 12", 10" x 15", 8"×10", 7"×10", 5"×7", 4"×6"(KG), 2L, L; Envelope: Envelope Com 10, Envelope DL, Nagagata 3-go and 4-go, Yougata 4-go and 6-go, Envelope C5, Envelope Monarch Others: B-Oficio, M-Oficio, User-defined size (Width: 89mm -297mm, Length: 127mm -1200mm)
Printer Performance
Media Internal Diameter Size
2"
Medial Roll Outer Diameter
110 mm or less
Print Resolution
2400x1200 dpi
Number Of Nozzles
Black: 1,280 Nozzles
C/M/Y: 1,024 Nozzles

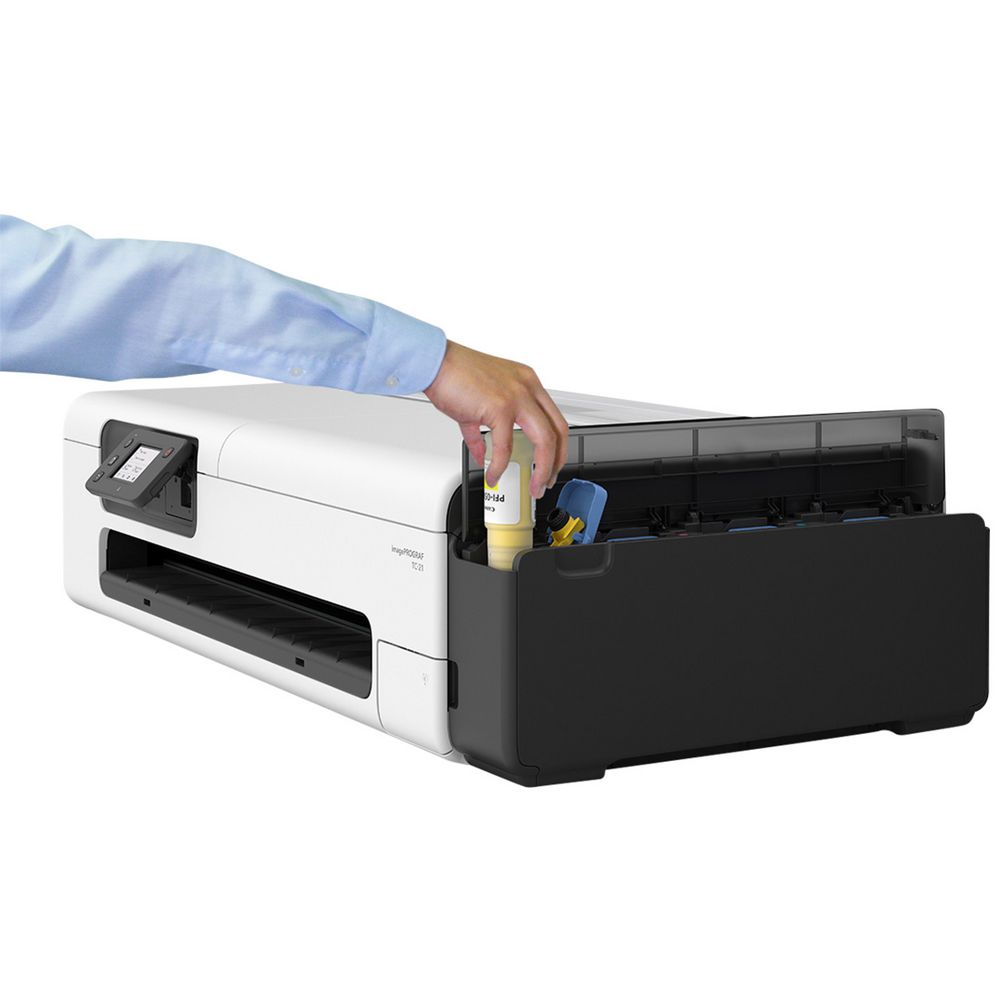

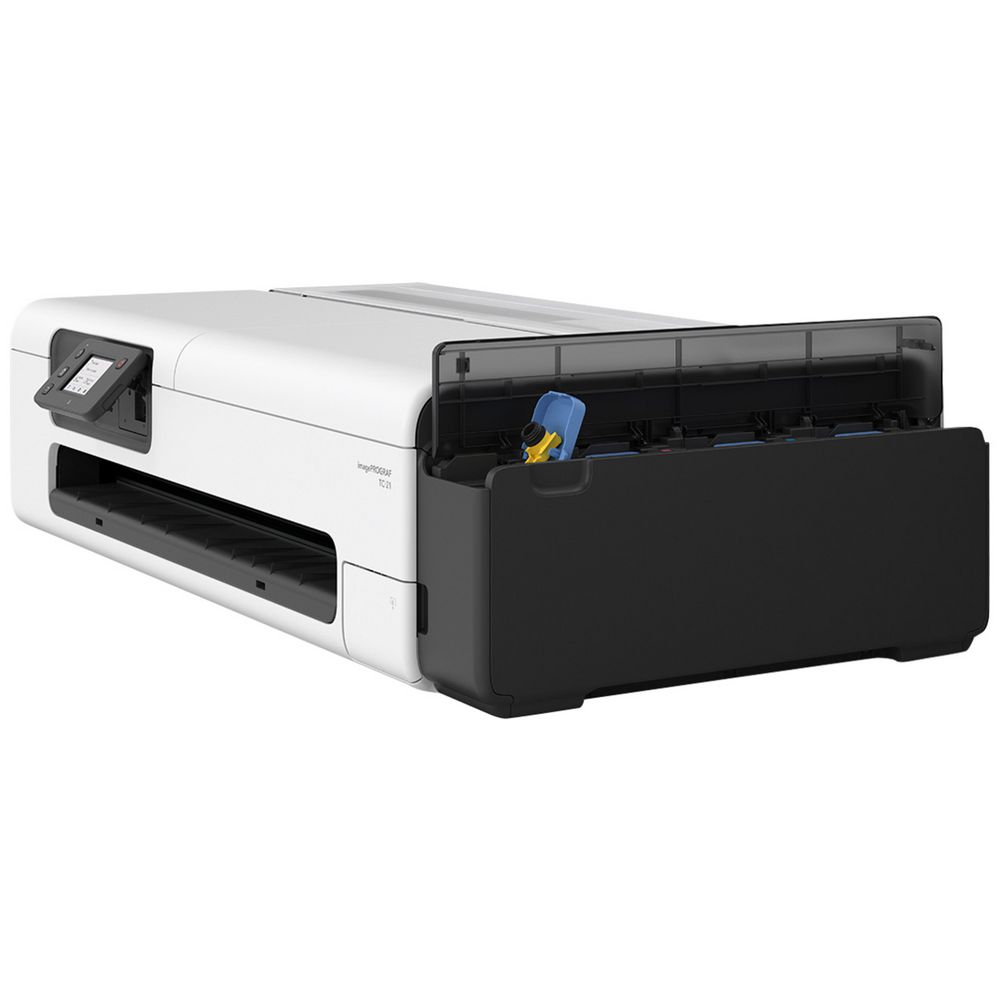

Refilling
Refills
PFI-050 (70ml)
Ink Type
Pigment: Black (BK), Cyan (C), Magenta (M), Yellow (Y)
Package Contents
What's in the box?
Canon imagePROGRAF TC-21 Printer with stand, Starter Ink Tank Set (1BK, 1C, 1M, 1Y), Setup CD-ROM & Guide, Power Cord & Canon Warranty Card
